Location:
Elk Grove Village, IL
Manufacturer:
Hitachi lathes
Model:

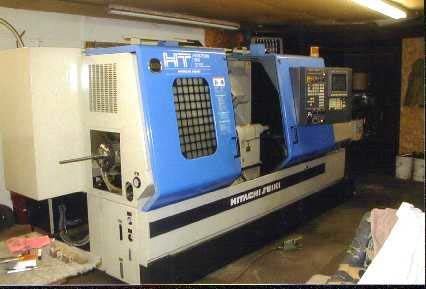

HITEC-TURN25G 2 Axis Slant Bed CNC Lathe

Specifications

Condition:
used
Year:
1998
Motor:
25HP Kw 18.5
Speeds:
20-3600 RPM
Equipped with:
Seicos LAMDA 10L CNC with conventional NC+PC Functions, 16,000m storage (100 directories each storing 160m program code or 100 programs 14 Color Monitor, 10" Hydraulic Chuck, Side Exit Chip Conveyor, Tailstock-Hydraulic, Manuals Tool Presetter
X-axis stroke:
290mm (11.4")
Z-axis stroke:
1120mm (43.3")
Rigid automatic:
Geared Low & High
Number of positions:
12
Maximum turning diameter:
15.5"
Standard & maximum turning diameter:
5(10") / (19.7")

Description

10" Hydraulic Chuck, Tool Presetter, 12 Position Turret, Tailstock, Seicos LAMDA 10L CNC
