Location:
Elk Grove Village, IL, USA
Manufacturer:
HM machining centers
Model:

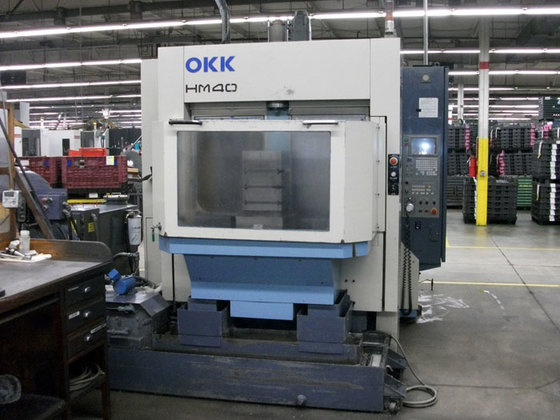

HM-40 CNC Horizontal Machining Center
Spindle Taper:
CT 40

Specifications

Condition:
used
Year:
1997
Main motor:
50 HP
Pallet size:
15.7" X 15.7"
Equipped with:
OKK Neomatic (Mitsubishi) CNC, Coolant Through Spindle, Turbo Chip Conveyor, 60 KVA Multi Tap Transformer, 1Degree Index (0-360), 1.5 seconds for 90 degree index, Torque-220 ft/lbs, Positioning Accuracy-+/-0.000098", Repeatability-+/-0.000059"
Spindle speed:
12,000 RPM
Spindle taper:
CT 40
X-axis travel:
22.5"
Y-axis travel:
20"
Z-axis travel:
22"
Table indexing:
1 Degree
Rapid feed rate:
1574 IPM

Description

(2) 15.7" X 15.7" Pallets, 3-Axis, 40 Taper, 12000 RPM, Okk CNC Control
