Location:
Elk Grove Village, IL, USA
Model:

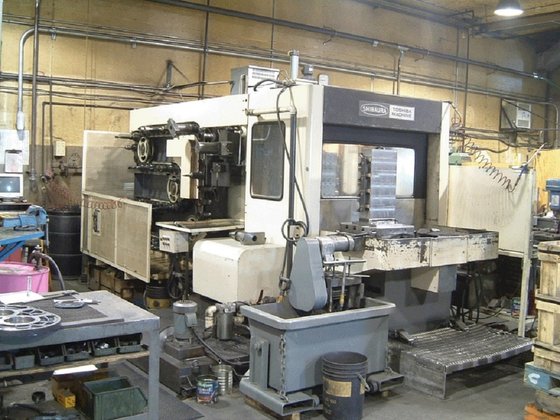

BMC50B 3 Axis Horizontal Machining Center
Spindle Taper:
50

Specifications

Condition:
used
Year:
1988
Table size:
19.7" x 19.7"
Equipped with:
Tosnuc 600MB CNC, Automatic Pallet Changer 2 Pallets, Set Up Load/Unload Station, Flood Coolant System, Hardened and Ground Box Ways w/ Turcite
Spindle speed:
5000 RPM
Spindle taper:
50
Tool capacity:
60 ATC
X-axis travel:
28.5" (725mm)
Y-axis travel:
23.8" (600mm)
Z-axis travel:
23.8" (600mm)
Pallet indexing:
1 Degree
Main motor drive:
20 HP

Description

3 Axis, (2) Pallet, 5000 RPM, 60 Position ATC, Tosnuc 600MB
