Location:
Elk Grove Village, IL, USA
Manufacturer:
ATC machining centers
Model:

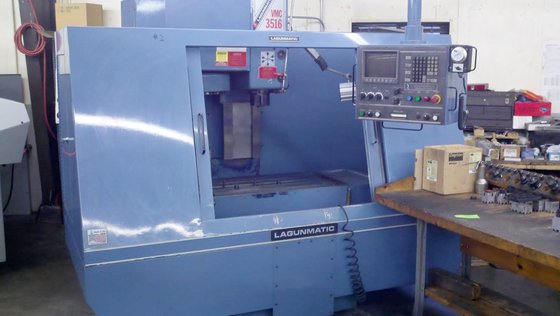

VMC 3516 CNC Vertical Machining Center
Spindle Taper:
40

Specifications

Condition:
used
Year:
1996
Table size:
35.5" X 15.75"
Equipped with:
DynaPath Delta Contouring Controls, Manual Pulse Generator, Flood Coolant System, Full Enclosures, Standard RS232, Full Enclosure Splash Guards
Spindle speed:
5000 RPM
Spindle taper:
40
Tool capacity:
18 ATC
X-axis travel:
24"
Y-axis travel:
16"
Z-axis stroke:
20"
Main motor drive:
7.5 HP

Description

40 Taper, 5000 RPM, 18 ATC, Delta Dynapath CNC Control
