Location:
Elk Grove Village, IL, USA
Model:

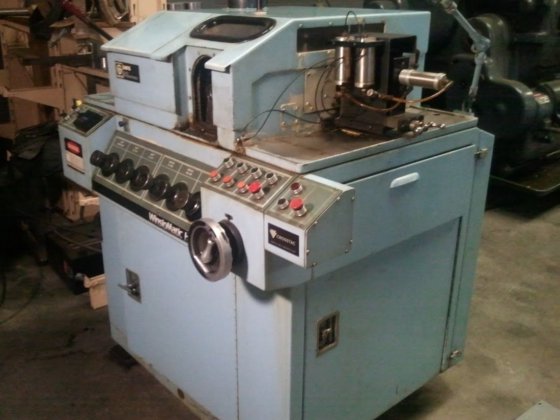

WinsloMatic HR Drill Point Grinder
Weight:
54" L-R x 48" F-B x 65" H Weight: 2,000 Lbs.

Specifications

Condition:
used
Year:
1987
Capacity:
1.5" Maximum drill dia., 12" X 0.75" Grinding Wheel,
Equipped with:
(8) Index Bushing, Plates (Mostly Metric) Drill Holders Up to 3/4", (1) Wheel Hubs Set-Up Charts, Cycle Counter, Flood Coolant, Work Light pneumatic Diamond, Dresser, Additional Tooling
Diameter ground:
split-point drills: 0.0625" (min.) to 0.5" (max.)
Grinding wheel size:
12" (diameter) X 0.75" (face) X 5" (bore)
Dimensions and weight:
54" L-R x 48" F-B x 65" H Weight: 2,000 Lbs.
Drill point angles ground:
60 to 120 Degrees

Description

(8) Index Bushing Plates (Mostly Metric) Drill Holders Up to 3/4"
