Location:
Elk Grove Village, IL
Model:
5A Internal Grinding Machine

Specifications

Condition:
used
Year:
1975
Swing over table:
14.17"
Type of operation:
Fully automatic and semi-automatic machine cycles
Work-head swivels:
+ / - 90 Degrees
Table travel, long.:
23.5"
Table traverse speed:
Variable from 0 to 400 IPM
Currently under power:
Yes
Grinding wheel speeds:
3,600 to 60,000 RPM
Work-head spindle bore:
1.96"
Work-head spindle speeds:
(6) from 125 to 1,000 RPM
Maximum work-piece length:
19"
Maximum length of hole ground:
10"
Current electrical arrangement:
3/60/440 V
Maximum diameter of hole ground:
8"
Minimum diameter of hole ground:
0.20"
Subcategory:
Grinders, internal

Description

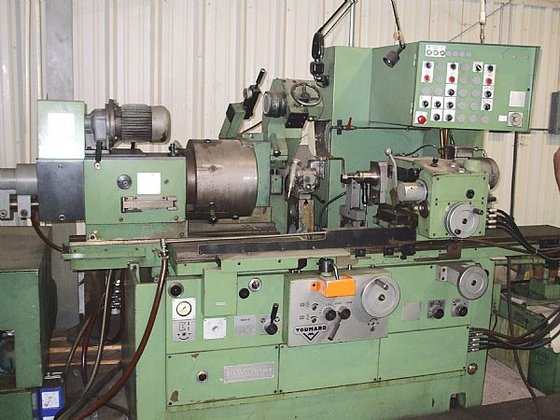

This Voumard Model 5A Automatic Internal Grinding Machine may be inspected under power on a US manufacturer's plant floor.
