Location:
Elk Grove Village, IL, USA
Model:

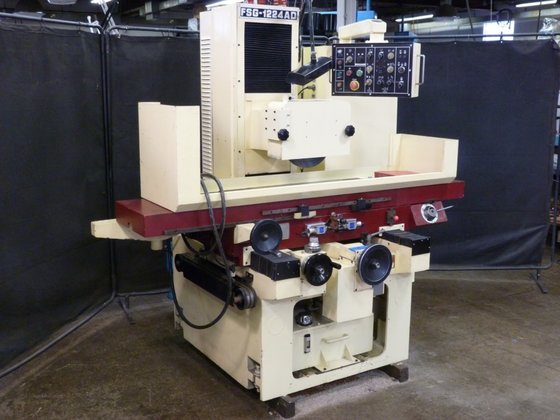

FSG-1224AD Automatic Surface Grinder

Specifications

Condition:
used
Equipped with:
Automatic Longitudinal Movement- Variable Speed Hydraulic Cylinder Drive, Automatic Cross Transverse - Variable Speed DC Motor Drive, Automatic Wheelhead Vertical Infeed - Solenoid Driven
Maximum travel:
27-1/2"
Micro downfeed:
.0001 micro
Rapid travel - cross:
56 IPM
Table working capacity:
12" x 24"
Standard grinding wheel:
14" x 2" x 5"
Table speed (inf variable):
16 - 82 FPM
Longitudinal movement of table:
25-5/8"
Wheel vertical infeed automatic:
0.0001 - 0.0002"
Max.distance from table surface to spindle:
24-3/4"
Subcategory:
Grinders, surface

Description

12' x 24" Capacity, 14" Dia Grinding Wheel, Hydraulic Operation, Automatic Cycles
