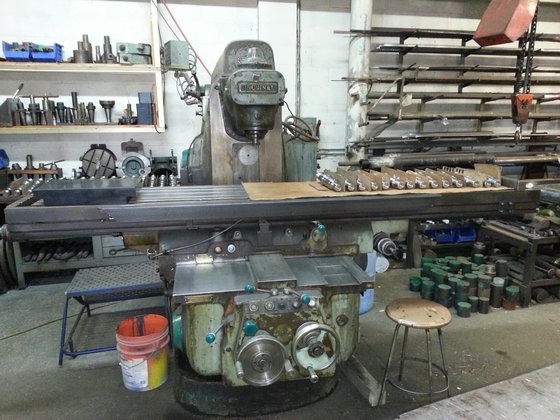

#6 Cincinnati Model Dial Type Horizontal Milling Machine W/ Vert Head in Elk Grove Village, IL, USA

Location:
Elk Grove Village, IL, USA
Price:
No price
Model:
Dial Type Horizontal Milling Machine W/ Vert Head

Specifications

Condition:
used
Throat:
36.5" length of arbor support
Equipped with:
Vertical Head Attachment, Accurite 3 Axis Digtal Readout, Wide-knee, Automatic backlash eliminator, Speed power and feed changes, Auto table cycle, Misc Tooling
Travel, cross:
14"
Vertical feeds:
3/32-22 IPM
Taper in spindle:
No.50
Rapid traverse rate:
150 IPM
Spindle speeds (14):
14-1400 RPM
Travel, longitudinal:
60"
Table working surface:
23" x 104"
Travel, vertical (knee):
20"
Longitudinal & cross feeds (32):
3/8-90 IPM
Max. height spindle center to table:
20
Subcategory:
Mills, horizontal

Description

50 Taper, 104" x 23" Table, Vertical Milling Head Attachment, Accurite Digital Readout
