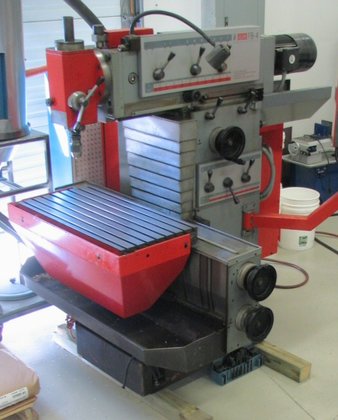

1994 17.7" X 11.8" X 13.7" Emco Maier Model FB-4 Universal Milling Machine in Elk Grove Village, IL, USA

Location:
Elk Grove Village, IL, USA
Price:
No price
Model:
FB-4

Specifications

Condition:
used
Year:
1994
Table area:
31.5" X 15.7"
Additional features:
Cartridge type high-speed auxilliary spindle (mounts to main spindle), Heidenhain 3-Axis digital readout, Horizontal / vertical hand-feed rotary table, Various 40-taper tool holders, 5" Milling machine vise.
Year of manufacture:
1994
Cross travel of table:
17.7"
Currently under power:
Yes
Taper in main spindle:
No.40
In-out travel of saddle:
11.8"
Vertical travel of knee:
13.7"
Vertical travel of quill:
3.9"
Taper in high-speed spindle:
No.30
Spindle speeds (high-speed spindle):
8,000 RPM (max.)
Subcategory:
Mills, universal

Description

40 Taper, 31.5" X 15.7" Table, High-speed spindle attachment, 3-Axis digital readout.
Additional features:
Cartridge type high-speed auxilliary spindle (mounts to main spindle), Heidenhain 3-Axis digital readout, Horizontal / vertical hand-feed rotary table, Various 40-taper tool holders, 5" Milling machine vise.
