63' x 15 3/8", Kao

63' x 15 3/8", Kao Ming, High quality imported machine. Looks and runs great! in Salt Lake City, UT

Location:
Salt Lake City, UT
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
c1112
Feeds:
12 Changes0.0023” to 0.044” IPR
Speeds:
12 Changes 30 to 1580 RPM
Spindle:
#5MT
Division:
Metalworking
Arm length:
63”
Box table size:
19 11/16” x 29 17/32” x 15 3/4”
Clamping motor:
3/4 HP
Spindle stroke:
11 3/4”
Column diameter:
15 3/8”
Base working area:
64 11/16” x 36 5/8”
Head travel on arm:
48 7/16”
Spindle motor size:
7 1/2 HP
Vertical arm travel:
23 7/8”
Motor for arm elevating:
2 HP
Distance of spindle to base:
61 13/16”
Subcategory:
Drilling & tapping

Description

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration:

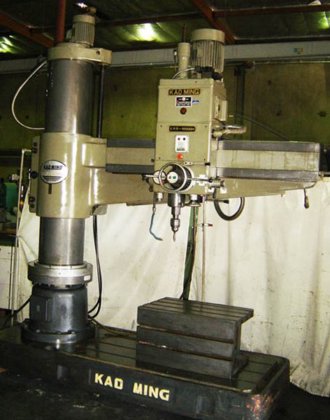

Pre-Owned Kao Ming Hydraulic Radial Arm Drill
Model:KMR-1600DHSerial No: 1666
General specifications are approximate and are subject to verification.
Arm Length: 63”
Column Diameter:15 3/8”
Vertical Arm Travel:23 7/8”
Head Travel on Arm:48 7/16”
Distance of Spindle to Base:61 13/16”
Spindle Motor Size:7 1/2 HP
Motor for Arm Elevating:2 HP
Clamping Motor: 3/4 HP
Speeds:12 Changes 30 to 1580 RPM
Feeds:12 Changes0.0023” to 0.044” IPR
Spindle:#5MT
Spindle Stroke:11 3/4”
Base Working Area:64 11/16” x 36 5/8”
Box Table Size:19 11/16” x 29 17/32” x 15 3/4”
Complete with:
•Hydraulic Pre-Selection of Speeds and Feeds
•Tool Ejector
•Hydraulic Clamping of Head, Arm and Column
•Power Rise and Fall of Arm on Column
•1/8”-3/4” Jacobs Ball Bearing Drill Chuck
•Pump and Coolant System
•Built in Work Light
Condition: High Quality Imported Machine. Looks and Runs Great!
