Tektronix TDS8200 in Taiwan

Tektronix TDS8200 in Taiwan
Location:
Taiwan
Price:
$11,500 (USD)
Model:
Tektronix TDS8200

Specifications

Condition:
used
Status:
Discontinued
Channels:
8
Division:
Test and Measurement
Bandwidth:
70.0 GHz
Launch date:
Dec-2004
Sample rate:
40.00 GSa/sec
Memory depth:
4K samples record length
Subcategory:
Digital
Subcategory 2:
Oscilloscopes

Description

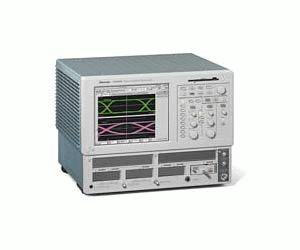

TEKTRONIX TDS8200 Digital Sampling Oscilloscope
Condition:
used
The
TDS8200
Digital Sampling Oscilloscope is a comprehensive acquisition and measurement instrument capable of processing very fast signals. It is the prime tool for research, design evaluation, and manufacturing test in fields of semiconductor test, components test, TDR, and other applications requiring bandwidths into tens of GHz.
State-of-the-art Acquisition System
Modularity and Flexibility
Superior Performance
8200 Series Sampling Oscilloscope Platform
TDS8200 Series Sampling Oscilloscope Optical Modules
Very low jitter with the Phase Reference mode
Jitter <200 fsRMS*2
Both Conventional Free Run and Triggered modes available with same low jitter
2 to 60 GHz continuous
Up to eight signal channels
TDR ≤ 35ps reflected risetime
True differential TDR/TDT with up to four differential pairs for TDR/TDT/Crosstalk
TDR probes, static protection modules available
Four Color Graded Variable Persistence waveform databases
MS Windows 2000 Operating System
Modular Architecture
Fast Acquisition Rate
Excellent Signal Fidelity
FrameScan™ Acquisition Mode
Comprehensive Measurement system with independently customizable measurements
Includes all of the features of the CSA8200 Communication Signal Analyzer
