Agilent HP 8752B in Taiwan
Location:
Taiwan
Price:
$6,000 USD
Model:
8752B

Specifications

Condition:
used
Stock number:
±500 dB with resolution of 0.001 dB
Range:
1/(2 x minimum aperture)
Status:
Discontinued
Division:
Test and Measurement
Standard:
300 kHz to 1.3 GHz
Alternative:
E5061A ENA-L RF Network Analyzer
Noise level:
-75, -85, -90, -100 dBm
Phase range:
±180 °
Reflection port:
10 dBm
With option 003:
300 kHz to 3 GHz
Transfer formats:
Binary, CITIFile ascii, 32/64 bit IEEE 754 Floating Point Format
Reflection port 2:
30 dBm or >25 Vdc
Transmission port:
0 dBm
Frequency response:
±3 °
Transmission port 2:
20 dBm or >25 Vdc
Frequency resolution:
1 Hz
Magnitude resolution:
0.01 dB/div
Front panel connector:
Type-N (female), 75 Ω (nominal)
Receiver dynamic range:
100 dB
Low end frequency limit:
0
High end frequency limit:
0
Phase reference level range:
±500 ° with resolution of 0.01 °
Subcategory:
Vector
Subcategory 2:
Analyzers network

Description

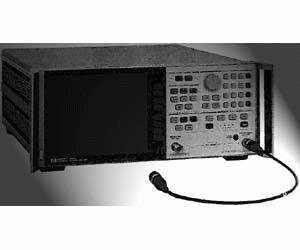

Agilent 8752B Network Analyzer 75ohms 300kHz-1.3GHz
Condition:
used
The HP 8752 is a high performance vector network analyzer for laboratory or production measurements of transmission and reflection parameters. It integrates a synthesized RF source and two separate measurement channels, a built-in transmission / reflection test set, and color display. No external equipment is required. An RF cable is supplied.
The
8752B
has a nominal system impedance of 75 Ω.
Two independent channels and a large color screen display the measured results of one or both channels, in rectangular or polar / Smith chart formats.
Measurement functions are selected with front panel keys and softkey menus. Displayed measurement results can be printed or plotted directly to a compatible peripheral without the use of an external computer. Instrument states can be saved in internal memory for at least three days. In addition, the instrument can control a compatible disk drive for external storage capability.
Buffer for plotting or printing while the instrument continues to make measurements
Trace math, data averaging, trace smoothing, electrical delay, measurement calibration
Automated operation with or without an external computer
Frequency range:
Standard: 300 kHz to 1.3 GHz
With option 003: 300 kHz to 3 GHz
Frequency resolution: 1 Hz
Test port power range: -20 to +5 dBm, resolution: 0.1 dB
Maximum receiver input level:
Transmission port: 0 dBm
Reflection port: 10 dBm
Damage level:
Transmission port: 20 dBm or >25 Vdc
Reflection port: 30 dBm or >25 Vdc
Receiver dynamic range: 100 dB
Noise level: -75, -85, -90, -100 dBm
Magnitude resolution: 0.01 dB/div
Magnitude reference level: ±500 dB with resolution of 0.001 dB
Phase range: ±180 °
Frequency response: ±3 °
Phase reference level range: ±500 ° with resolution of 0.01 °
Group delay:
Aperture: Selectable - maximum aperture 20% of frequency span, minimum aperture (frequency span)/(number of points - 1)
Range: 1/(2 x minimum aperture)
HP-IB interface:
Transfer formats: Binary, CITIFile ascii, 32/64 bit IEEE 754 Floating Point Format
Function Codes: SH1, AH1, TE0, L4, LE0, SR1, RL1, PP0, DC1, DT1, C1, C2, C3, C10, E2
Front panel connector: Type-N (female), 75 Ω (nominal)
Rear panel connectors:
External Reference Frequency Input (EXT REF INPUT): Frequency 1, 2, 5, and 10 MHz, Level -10 dBm to +20 dBm, Impedance 50 Ω
External Auxiliary Input (AUX INPUT): Input voltage limits: -10 V to +10 V
External AM Input (EXT AM): ±1 volt into a 5 kΩ resisitor, 1 kHz maximum, resulting in 8 dB/volt amplitude modulation
External Trigger (EXT TRIGGER): Triggers on a negative TTL transition or contact closure to ground
