ONTEC RM-2500 in Japan
Location:
Japan
Price:
$11,900
Manufacturer:
ONTEC
Model:
RM-2500

Specifications

Condition:
used
1)stage:
XYZ theta manual operation
2)camera:
Color CCD camera
Model year:
2007
Device size:
10~50mm(20kg and under)
Power supply:
1 phase AC200V/220V 50/60Hz
Control system:
Indipendent PID control
Substrate size:
40 x 40mm~460 x 370mm(2 kg and under)
Dimension/weight:
W780 x D640 x H830mm/About 65 kg
1)upper spot heater:
1000W
2)bottom spot heater:
1000W
3)bottom area heater:
2000W
Electricity consumption:
4kVA
Air pressure supply source:
0.5MPa(200L/min and more)

Description

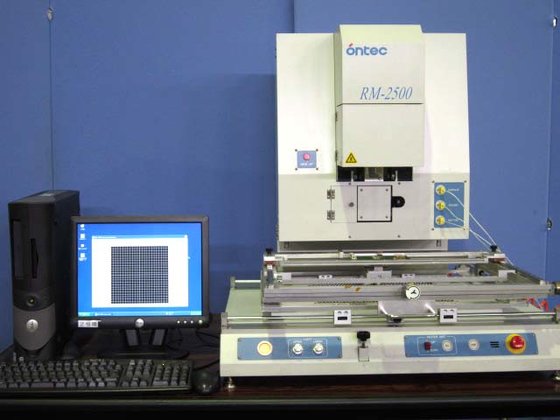

#04588 ONTEC Rework Machine RM-2500
Model Year : 2007
Substrate size : 40 x 40mm~460 x 370mm(2 kg and under)
Device size : 10~50mm(20kg and under)
Temp. control
1)Upper spot heater : 1000W
2)Bottom spot heater : 1000W
3)Bottom area heater : 2000W
Control system : Indipendent PID control
Positioning
1)Stage : XYZ theta manual operation
2)Camera : Color CCD camera
3)Lightning : Upper : white LED, bottom : red LED
Dimension/Weight : W780 x D640 x H830mm/About 65 kg
Air pressure supply source : 0.5MPa(200L/min and more)
Power supply : 1 phase AC200V/220V 50/60Hz
Electricity consumption : 4kVA
