Location:
Staufenberg, Germany
Model:
Finimat IV B 600 TS

Specifications

Condition:
used
Year:
1971
Stock number:
108903
Subcategory:
Grinders

Description

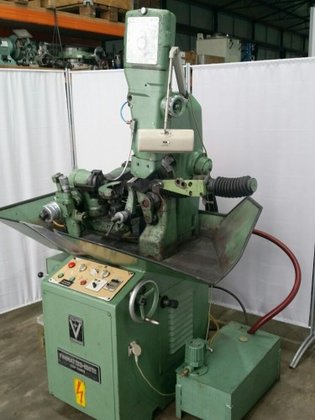

HM circular saw blade sharpening machine Fabr. VOLLMER type Finimat IV B 600 TS
: 731, Year of construction 1971
Technical specifications:
Saw blade diameter: 100 - 600 mm
Max. Thickness of the blades: 6 mm
kl./gr. Tooth pitch: 7/110 mm
Rake / grinding angle: 5 - 45 °
Back clearance angle: 8 - 45 °
Tilt angle / tooth back: 0 - 45 °
Helix / tooth face: 0 ° - 12 °
Grinding wheel feed kl .: 0.01 mm
Grinding wheel external diameter: 100 mm
Rotational speed: 3600 rev / min.
Hydraulic motor: 0.55 kW
Grinding motor: 0.55 kW
Power consumption: 1.3 kW
Weight: 550 kg
External dimensions: 1300 x 1200 x 1900 mm
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
