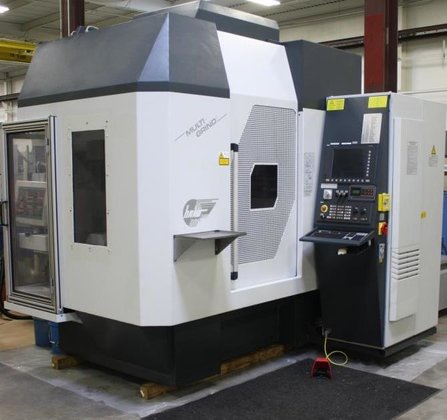

Haas, Multigrind HT, 5-Axis, CBN, 10 Pos Whl Chnger, Part Probe/Tool Probe #33296 in Lincolnshire, IL

Location:
Lincolnshire, IL
Manufacturer:
Haas

Specifications

Condition:
used
Year:
2005
Stock number:
33296
Length:
15.2" (380mm)
X-axis:
28" (700mm)
Y-axis:
21.6" (540mm)
Z-axis:
12" (300mm)
Coolant:
Hi-Pressure w/Heat Exchanger
Diameter:
10.4" (260mm)
Footprint:
128" x 96" (3,200mm x 2,400mm)
Interface:
SK 50, Center 2.756" (70H5)
Filtration:
(2) Slim-Line Bag Vessel
Separation:
Magnetic
Table depth:
17.6" (440mm)
Table width:
40" (1,000mm)
Center height:
7" (175mm)
Tool diameter:
10" (250mm)
Machine weight:
17,600 lbs. (8,000 kg)
Number of tools:
10
Linear feed rate:
680 IPM (17,000mm/min.)
Operating height:
132" (3,300mm)
Rotational speed:
1,000 RPM
Operating pressure:
87 - 145 psi (6 - 10 bar)
Power requirements:
400V; 50Hz at 63 - 80A
X3-axis (auxiliary):
13.6" (340mm)
Linear axis resolution:
0.00002" (0.0005mm)
Rotary c-axis feed rate:
100 RPM
Chiller unit refrigerant:
R407C
Distance between centers:
15.2" (380mm)
Rotary c-axis resolution:
0.001 degrees
C-axis (angle of rotation):
300 degrees

Description

Serial No. 2804 New: 2005
Hours: 12,412
SPECIFICATIONS:
Grinding Spindle
Machine Table
Travel
Accuracy/Feed Rates
Headstock (A-axis)
Tool Changer
Work Envelope
Dimensions
Ebbco Package Filtration System
Serial No. 8896(Separation), 9407(Coolant/Filtration), 50890(Chiller)
EQUIPPED WITH:
Siemens Sinumerik 840D Continuous Path Control
Renishaw MI8-4 Probe Interface
Ebbco Package Filtration System
Festo Valve & Pressure Booster
IPF Optical Laser Sensor
BKW Water Recooler
MPM Balancer
Rittal SK Cooling Unit
Blum LaserControl
Wheel Dresser
US Robotics Modem
CO2 Extinguishing System
Blast Shutter
Software, Manuals, and Drawings
*Preliminary Specifications Subject to Verification
