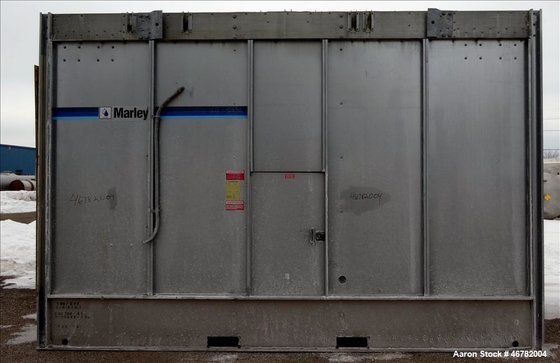

- Marley NC Class Single Cell Cooling Tower, Model NC8304F-1, Nominal 310 Tons, Galvanized Steel Housing in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Marley
Model:
NC8304CS

Specifications

Condition:
used
Serial number:
202736A1
Stock number:
46782004
Tons:
247
Motor hp:
15
Motor rpm:
1770
Motor cycle:
60
Motor phase:
3
Fan diameter:
approximate 96"
Motor voltage:
208-230/460 Volt
Flow rate (gpm):
approximate 930
Hot temperature:
95 degrees F
Cold temperature:
85 degrees F
Overal dimensions:
208"L x 108"W x 144"T
Wet bulb temperature:
78 degrees F
Bottom pan construction:
Stainless Steel
Cooling capacity (tons):
310
Material of construction:
Galvanized

Description

46782004 Used- Marley NC Class Single Cell Cooling Tower, Model NC8304F-1, Nominal 310 Tons, Galvanized Steel Housing. Designed to cool approximate 930 gallons per minute from 95 degrees F hot to 85 degrees F cold at 78 degrees F wet bulb. Approximate 96" diameter fan, driven by a 15hp, 3/60/230/460 volt, 1770 rpm motor. Serial# 202736-A1.
