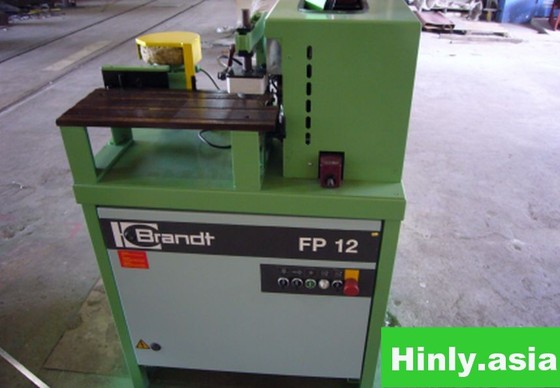

BRANDT FP12 CORNER ROUNDING MACHINE
Location:
Johor, Malaysia
Price:
$3,125 USD
Manufacturer:
Brandt
Model:
FP12

Specifications

Condition:
used

Description

BRANDT FP12 CORNER ROUNDING MACHINE
Workpiece thickness : max. 55mm
Workpiece width : min. 80mm
Softforming profile depth : max. 80mm
Internal radius : min. 10mm
Edge thickness : max. 3mm [depending on radius and edge material]
Trimming motor : 0,5kw, 27000 rpm
Trimming tool : 15 deg. chamfer [radius tool optional]
Electrics : 220 Volts / Single Ph / 50 Cycl.
Total power requirement : 0,5kw
Compressed air requirement : 6 bar
Dimensions : 850 L x 650 W x 1430 H mm
Working height : 1000mm
Weight : approx. 120 kgs
# SSU-05003-1
Machine is in working condition without new paintwork and guarantee.
