TAGLIABUE WIDE BELT SANDING MACHINE
Location:
Johor, Malaysia
Price:
$47,815 USD
Manufacturer:
TAGLIABUE
Model:
TAG12

Specifications

Condition:
used

Description

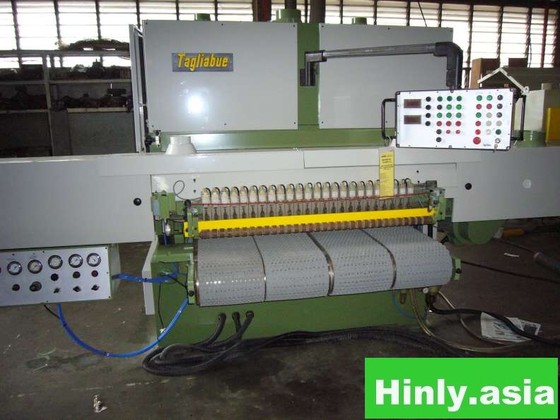

TAGLIABUE WIDE BELT SANDING MACHINE - TYPE TAG 12

TECHNICAL FEATURES :
Workplane fixed height : 900 mm
Working width : 1350 mm
Workpiece thickness : 6-150 mm
New Conveyor Belt- divides into 4 sections
Rubber hardness : 45 shore
Conveyor feed speed variable from 5-25 m/min
Conveyor belt speed variator 3Hp

1 no. cross belt with 25 sections c/w Chevron belt
2 speed motor : 11/15Hp 710/1420rpm
Sanding belt size : 7350 x150 mm
Chevron belt size : 5510 x 140mm

1 no. Contact Roller
Diameter of drum :- 330 mm
4 sectioned tables – to allow the sanding of the thickness differences

Inverter motor : 26Hp with cooling motor 0.75Hp
Cutting speed 1-20 m/sec
Sanding belt size 2620x1350 mm
Up/down motor : 1.5Hp

1 no. 25 sections pad
Inverter motor : 20Hp with cooling fan motor 0.75Hp
Cutting speed : 1-20 m/sec
Sanding belt size : 2620 x 1350 mm
Up/down motor : 0.75Hp

1 no. Brushing unit
motor : 1.5Hp / 910rpm

1 no. Vacuum fan
motor : 12.5Hp / 2800rpm

# IVU-00013-1C
Machine is in working condition without new paintwork and guarantee
