Top Seller
1957 18" Swing 72" Centers
Location:
Harrison, NJ
Model:
LC-2
Weight:
31,000 Lbs.

Specifications

Condition:
used
Year:
1957
Serial number:
26669
Stock number:
153691
Actual swing:
19- 1/2"
Center taper:
No. 16 Jarno
Nominal swing:
18"
Table reversal:
0 to .003"
Table feed rate:
3 to 144 IPM
Foot on diameter:
2- 1/4"
Tailstock center:
No. 16 Jarno
Approx. floor space:
220" Long x 88" Deep
Grinding wheel size:
30" x 3" x 12"
Grinding wheel motor:
20 HP
Total automatic feed:
0.150" on Diameter
Approx. machine weight:
31,000 Lbs.
Distance between centers:
72"
Wheel feed handwheel grads:
Each Click of the Index Knob is 0.0001"
Table handwheel, one rev. is:
0.167"

Description

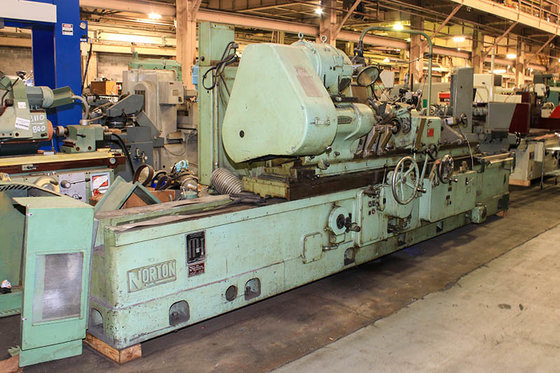

18" x 72" Norton "Heavy Duty" Plain Cylindrical Grinder
Model: Type LC-2 S/N: 26669 New: 1957
Specifications:
Nominal Swing: 18"
Actual Swing: 19- 1/2"
Distance Between Centers: 72"
Center taper: No. 16 Jarno
Grinding Wheel Size: 30" x 3" x 12"
Grinding Wheel Motor: 20 HP
Table Handwheel, One Rev. Is: 0.167"
Table Feed Rate: 3 to 144 IPM
Automatic Wheel Infeed @ Each
Table Reversal: 0 to .003"
Total Automatic Feed: 0.150" on Diameter
Wheel Feed Handwheel Grads.: Each Click of the Index Knob is 0.0001"
One Full Turn of index Knob is 0.004"
One Full Turn of Handwheel is 0.100"
Taper Adjustment - Inches per
Foot on Diameter: 2- 1/4"
Tailstock Center: No. 16 Jarno
Approx. Machine Weight: 31,000 Lbs.
Approx. Floor Space: 220" Long x 88" Deep
Features:
Hydaulic Table Traverse
Hydraulically Controlled Adjustable Infeed of Grinding Wheel at
Table Reversals, 0 to .003" on Diameter
Wheel Feed "Click Count" Indexing Mechanism Permits
Instant Stettings of .0001" in Work Diameter Reduction
Without Visual Attention.
Individual Table Speed Controls for Truing & Traverse
Grinding Increase Machine Productivity.
Wheel Reciprocating Feature, 0 to 3/8" of Reciprocation
Variable Speed Workhead
(2) Two-Point Rest Supports
Table Mounted Wheel Dresser
Radius Dresser
Large Coolant System
Extra Grinding Wheel
Two Axis Digital Readout Display
3/60/220-440 Volt Electrics
Presently Wired for 3/60/220 Volts, 70 Full Load Amps Service
** Heavy Pattern Machine, One Heck of a Machine! **
** Inspect Under Power in our Harrison, NJ Warehouse **
** Beautiful Condition & Appearance **
