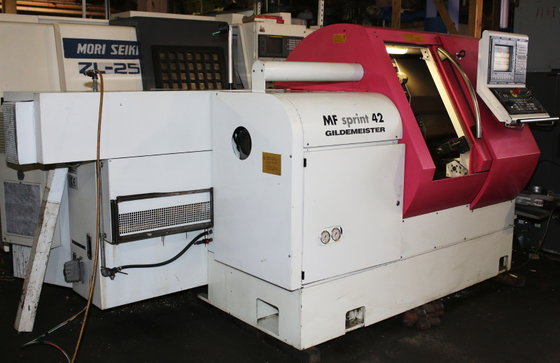

2000 Gildemeister MF Sprint 42
Location:
Harrison, NJ
Price:
$39,500 USD
Manufacturer:
Gildemeister lathes
Model:
MF Sprint 42

Specifications

Condition:
used
Year:
2000
Serial number:
07710000371
Stock number:
153550
New:
2000
Max. torque:
133/99 ft-lbf
Bar diameter:
1.654" (42mm)
Approx weight:
11,025 LBS
C-axis torque:
133 ft/lbf
X-axis travel:
6.102"
Z-axis travel:
11.024"
Shank diameter:
1.181"
Number of tools:
8
Speed of c-axis:
120 RPM
X-axis travel 2:
3.228"
Z-axis travel 2:
5.118"
Max. drive rating:
25.5/18.8 HP
Max. drive rating 2:
10.2/6.2 HP
Max. rotational speed:
5000 RPM
Spindle hole diameter:
2.205"
Rotational speed range:
31-6300 RPM
Rapid traverse rate x/z:
73.82 ft/min
Clamping dia. with collet:
1.654" (42mm)
Number of driven stations:
4
Subcategory:
Cnc machines

Description

GILDEMEISTER MF SPRINT 42 MULTI-AXIS CNC TURNING CENTER
NEW: 2000
SPECIFICATIONS:
MAIN SPINDLE:
BAR DIAMETER ................... 1.654" (42mm)
SPINDLE HOLE DIAMETER .......... 2.205"
MAIN DRIVE:
MAX. DRIVE RATING .............. 25.5/18.8 HP
ROTATIONAL SPEED RANGE ......... 31-6300 RPM
MAX. TORQUE .................... 133/99 ft-lbf
SPEED OF C-AXIS ................ 120 RPM
C-AXIS TORQUE .................. 133 ft/lbf
SLIDE 1:
X-AXIS TRAVEL .................. 6.102"
Z-AXIS TRAVEL .................. 11.024"
RAPID TRAVERSE RATE X/Z ........ 73.82 ft/min
SLIDE 2:
X-AXIS TRAVEL .................. 3.228"
Z-AXIS TRAVEL .................. 5.118"
RAPID TRAVERSE RATE X/Z ........ 73.82 ft/min
TOOL HOLDER:
NUMBER OF TOOLS ................ 8
SHANK DIAMETER ................. 1.181"
NUMBER OF DRIVEN STATIONS ...... 4
COUNTER SPINDLE:
CLAMPING DIA. WITH COLLET ...... 1.654" (42mm)
CLAMPING DIA. WITH 3 JAW CHUCK . 1.654"
MAX. DRIVE RATING .............. 10.2/6.2 HP
MAX. ROTATIONAL SPEED .......... 5000 RPM
DIMENSIONS AND WEIGHT:
TOTAL LENGTH w/CHIP CONVEYOR ... 138"
TOTAL DEPTH w/SWITCH CABINET ... 65"
APPROX WEIGHT .................. 11,025 LBS
EQUIPPED WITH:
- SIEMENS SINUMERIK 840C CNC CONTROL
- FMB TURBO MAGAZINE BARLOADER
- 8 POSITION UPPER AND LOWER TURRETS w/4 LIVE STATIONS EACH
- PARTS CONVEYOR
- CHIP CONVEYOR
- ALL AVAILABLE LIVE AND STATIC TOOLHOLDERS
- ALL AVAILABLE MANUALS
