Agilent HP 37718A in United
Location:
United States
Price:
$6,745 USD

Specifications

Condition:
used
Status:
Discontinued
Supported until:
Oct-2009
Discontinuance date:
Oct-2004

Description

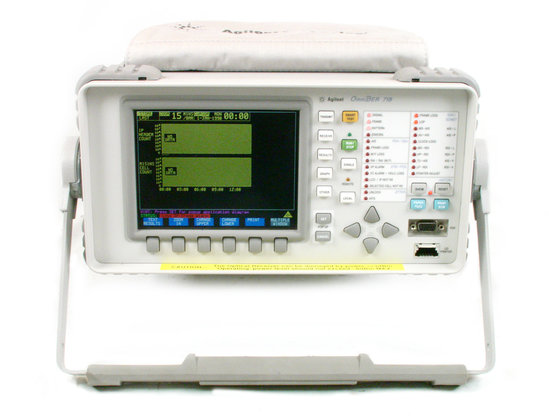

HP / Agilent Agilent HP 37718A OmniBER 718 with Options 002-011-206-601
In stock
Condition:
Reconditioned
The Agilent
OmniBER 718
37718A
) communications performance analyzer is a single-box portable multi-rate BER and jitter tester up to 2.5 Gb/s (OC-48/STM-16) for development, qualification and manufacture of SONET, SDH, ATM and POS network equipment, sub-assemblies, line cards and devices.
ATM and POS test capability to 2.5 Gb/s
Concatenated payloads at all synchronous rates up to 2.5 Gb/s
SmartTest facility for fast test setup
Large color display
Automatic detection of mixed payload signal structures
SDH/SONET ring testing. Note:
Optical interfaces on the 37718A use a customer exchangeable connector system. On 37718B and 37718C models, a fixed connector system is used (supports removal for cleaning)
The 37718A optical receiver operates over the range 1200 to 1600 nm. Sensitivity and maximum input power specifications are valid in defined wavelength ranges
PDH and T-carrier testing
Remote control for manufacturing by automatically generating SCPI commands
Remote control for remote in-service monitoring from a PC via modem or LAN
Accurate measurement of protection switching times (ring and linear networks)
Jitter generation and measurement at all rates (1.5, 2, 8, 34, 45, 140, 52, 155, 622 and 2,488 Mb/s)
Jitter testing to ITU-T and Telcordia recommendations
Wander analysis software for providing real-time calculation of the MTIE, TDEV, and MRTIE wander performance indices
POS and ATM options
