Location:
Staufenberg, Germany
Manufacturer:
Graule

Specifications

Condition:
used
Year:
1989
Stock number:
107421
Subcategory:
Notching
Subcategory 2:
Aluminum and window

Description

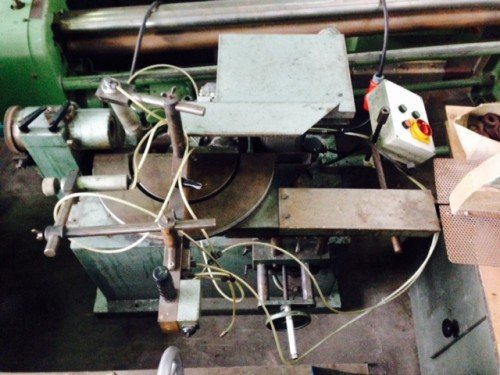

Notching Fabr. GRAULE type AS 350
Year 1989
Technical specifications:
Working area:
Cutting height: 110 mm
Klink Depth: 85 mm
Notching: 200 mm
Tool fixture:
vertical unit: 40 mm, 4 mm Seat height
horizontal unit: 40 mm, 15 mm seat height
Tool diameter:
vertical unit: 350 mm
horizontal unit: 300 mm
Air supply: 6 bar
Speed: 2800 r / min. direct drive
Drive 2 three-phase brake motors: 380 V, 3 kW
Individually switchable motors with bottom
voltage tripping and overload
backup
Weight: 300 kg
Adjustment: sliding table on
: Handwheels for height and
: Depth adjustable
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by appointment.
Technical specifications are not binding. Errors excepted.
