2005 BIESSE AKRON 850 EDGEBANDER
Location:
Europe
Price:
$25,402 USD
Manufacturer:
Biesse

Specifications

Condition:
used
Year:
2005
Recnum:
EO-012036
Comments:
Nice BIESSE Edgebander cleaned and checked with Corner Rounding!
Machtype:
EDGEBANDER (W/PRE-MILL & CORNER ROUNDING)
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
120000

Description

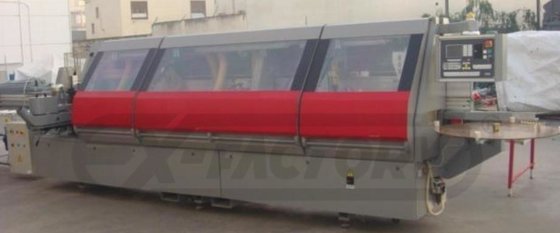

BIESSE AKRON 850 Single-Sided Edgebander; Left-hand material infeed for strips & coiled edge material like PVC, ABS, veneer, and solid wood.

-- Edge & Workpiece Capacity: 0.4 - 3 mm (0.016 - 0.12") Edge; 10 - 60 mm (0.39 - 2.36") panel thickness; 140 mm (5.5") min. panel length, and 85 mm (3.3") min. width.

-- Independent copying guide pads on each unit with manual adjustment & mechanical digital indicator.

-- Includes: Auto-Set device to ensure optimum positioning of the cutters according to the thickness of the panel being machine; (2) 1.8 kW motors (2.5 HP), 12,000 RPM.

-- "VC-710" edge feeding, gluing & pressing unit with automatic edge magazine for strip & coil stock; 3 mm PVC guillotine.

-- "TEKNO-GLUE" System, Pre-Melt "QM-701" for quick heating & tank changing with floating & bi-directional glue roller applicator.

-- Pressure Section: (1) Large motorized pressure wheel with clutch, plus (5) idle rollers, independent pneumatic pressure control & digital counters for quick edge thickness changeover.

-- Feed Speeds: 10 - 14 - 20 MPM (33 - 46 - 65 FPM).Edgebanding Workstations:

-- Double Motor End Trim, tiltable from 0ø - 15ø, each motor 0.5 kW (0.6 HP) - 12,000 RPM; sliding in a slicing motion on a 45ø precision guide bar with oversized bearing blocks.

-- Flush Trim: Top/bottom (2) motors, each 1.8 kW (2.5 HP) 12,000 RPM with superimposed motor position, 0ø - 45ø tilt capability, straight cutterheads (80 x 25 x 16 mm) w/insert knives; includes pneumatic exclusion from control panel.

-- Multifunction 2-Motor Corner Rounding Unit "CR-202": (2) Motors, each 0.65 kW (0.87 HP) - 12,000 RPM; motors carry out Corner Rounding and Top & Bottom Trimming on panel edge with PVC, ABS, etc. material and wood edgebanding up to 5 mm max. edge thickness.

-- Radius Scraping (PVC): Knives R = 3 mm, Top & bottom with mechanical digital indicators for precision setup, pneumatic exclusion of the unit from the machining line, PVC scrape collection box.

-- Flat Scraper (Glue): Top & Bottom self-adjusting with copy wheels & flat insert knives, removing potential excess glue before buffing unit.

-- Oscillating Buffing Station: Top & Bottom, (2) motors, each 0.37 kW (0.5 HP) - 2,800 RPM.

-- Belt Sandin Unit: for sanding straight veneered including oscillation as a standard feature..

-- Complete with: Operator control panel, "NC 407" Controller (max. of 320 programs), soft-touch keypad & 6" color LCD screen, displays in millimeter or inch units, 1.44 MB floppy drive, automatic or manual startup.

-- All cutting & trimming workstations are HF (high frequency motors) and enclosed by padded sound enclosure, top pressure is provided by staggered double-row holddown wheels mounted on ball bearings.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Du
