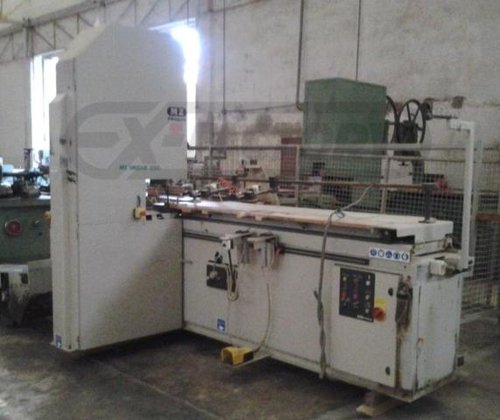

1999 MZ-PROJECT UNIDUE HOPPER 020
Location:
Europe
Price:
$20,956 USD
Manufacturer:
MZ-PROJECT
Model:
UNIDUE HOPPER 020

Specifications

Condition:
used
Year:
1999
Recnum:
SB-011481
Comments:
This MZ-PROJECT "Unidue w/Hopper" is truly a very rare find - a Jewel!
Machtype:
BAND SAW (AUTOMATIC PROFILE)
Condition info:
(3-6) Good Condition [6]
Current status:
Active
Elect./voltage:
380 V, 50 Cy, 3 Ph.
Appr. repl. cost:
88000
Category:
Saws
Subcategory:
Saws - band/scroll

Description

MZ-PROJECT UNIDUE HOPPER 020 CNC Auotmatic Band Saw;Specificatons: 33" Throat cap., 15" under guide, 33" dia. wheels, 10 HP belt drive motor for optimum blade speed, 1/8" - 1 3/4" blade width capacity.

-- 56" Wide x 84" long table; entire table with 3" in-and-out travel for tracing patterns.

-- Operation: The machine uses a simple template made of laminated wood. The template is located at the rear of the machine. (2) Templates are accepted and are independently controlled by the machine: (1) For the outside cut; the 2nd for the final cut in case the workshape is not symmetrical.

-- The template copying device is controlled by pneumatic cylinder, which positions the tracing head into position on the template and withdraws the head when the traveling table, controlled by hydraulic cylinder, returns to the rear start position.

-- The tracing head is linked to the band saw blade by means of pivoting arms to the upper-and-lower blade guidance systems. As the template moves forward with the table, the tracing head moves along the template edge twisting-and-turning the vertical blade at the same time the table moves on the pneumatic horizontal cross-transfer and longitudinal movement.

-- An automatic feed device is mounted on the upper table and automatically positions the stock at the cutting line after cutting cycle until the stock in finished.

-- Capacity & Speed: Cuts lengths up to 2,000 mm, max. size workpiece is 2,000 x 1,200 x 100 mm; height of cut is from 0 - 100 mm; angle cut +/- 45°; dwell (depth of curve) is 150 mm; blade length 5,730 mm and a blade speed of 1,550 RPM; forward table speed is 0 - 16 MPM with return speed of 40 MPM. Hydraulic pump cap. is 25 liters and the pump motor is 2.5 HP providing working pressure of 40 Bar. Pneumatic working pressure is 6 Bar.

-- Equipped with: (2) 6" Dia. dust hoods; automatic hopper feeder controlled by electronic positioner to advance the workpiece via ball screw & DC motor; double template device for cutting pieces with (2) profiles, hydraulic copy system, and automatic table speed control.

-- Features: Automatic electric lubrication system, pneumatic blade tension, (2) pneumatic clamps, and self-braking band wheels.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
