2011 BLACK BROTHERS LAMINATING LINE

2011 BLACK BROTHERS LAMINATING LINE in Brantford, Canada

Location:
Brantford, Canada
Manufacturer:
Black Brothers

Specifications

Condition:
used
Year:
2011

Description

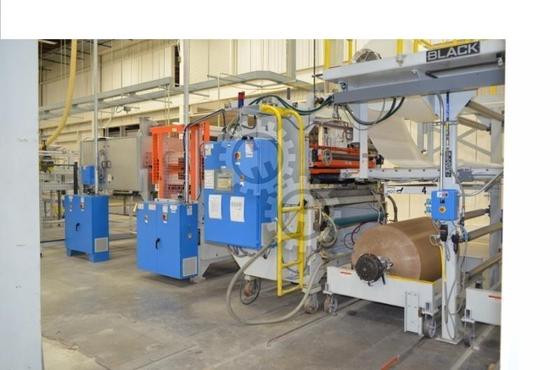

2011 BLACK BROTHERS LAMINATING LINE
1) CRANE- DEMAG 3-TON CRANE ,COMPLETE WITH RAILS AND LEGS, INCLUDES BOOM BAR AND STRAPS

2) BLACK BROTHERS INFEED CONVEYOR (WITH PANEL WARMERS) (2) UNWIND STATIONS TO HOLD LAMINATING MATERIAL, SET ON A MEZZANINE STRUCTURE. INCLUDES STAIRS.

3) BLACK BROTHERS CONTROLS – SIEMENS (SIMATIC PANEL) 10” TOUCH PANEL - WITH LINE OF SPEED CONTROL , MASTER SPEED CONTROL OF 775 ADHESIVE SPREADER, CONVEYOR, PANEL EXPRESS AND OVEN LINE SPEEDS ALSO EMERGENCY STOP PUSH BOTTON.

4) BLACK BROTHERS (775) TOP & BOTTOM GLUE SPREADER, 56” WIDTH CAPACITY, 0 TO 4 ½” OPENING, AUTO ELEVATOR MOTORIZED ADJUSTMENT OF THICKNESS GAP SETTING WITH PRE-SETS, AIR LIFT TO RAISE TOP ROLLS 3” DURING LINE STOPPAGE, VARIABLE SPEED DRIVE; A.C INVERTER TYPE WITH REVERSE LOCK-OUT, 12-35 FPM, 2H.P, E-STOP CABLES, PIVOTING IN-FEED TABLE WITH INTERLOCK SWITCH, OPERATING HAND-WHEELS & ELECTRICAL CONTROLS ON LEFT, DOUBLE DIAPHRAGM PUMP MOUNTED ON LEFT, 1” PORTS AND NEOPRENE DIAPHRAGMS FOR WATER BASED ADHESIVES, LIQUID LEVEL CONTROL – FIBRE OPTIC TYPE FOR PVA OR SIMILAR ADHESIVES, GLASS TYPE FIBRE OPTIC LIQUID LEVEL FOR BOTTOM RESERVOIR, FEED LINES TO BOTH ENDS OF TOP AND BOTTOM RESERVOIRS, AUTOMATIC ROLL CLEANING ARRANGEMENT, NON-STICK COATING OR GUARDS, TABLES, AND END SEAL BACKING PLATES, CENTRALIZED LUBRICATION SYSTEM , INCLUDES ALL GREASED PARTS ON THE MACHINE GEARS, SPROCKETS & BEARING, ALL GREESE ZERKS TO 2-4 CENTRAL MANIFOLDS.

5) BLACK BROTHERS (PANEL EXPRESS) HEATED PINCH ROLLER – 56” WIDTH CAPACITY, ADJUSTMENTS FOR PRODUCT THICKNESS AND PRESSURE IS SET WITH MOTOR AND AIR LIFT, MACHINE HAS (3) TOP AND (3) LOWER ROLLERS AS WELL AS (2) HEATERS ON TOP AND (2) HEATERS ON BOTTOM. 6) PROCESS THERMAL DYNAMICS (FBC0) INFRARED OVEN
