Top Seller
Monarch 22 X 096 MDL
Location:
Holland, OH
Manufacturer:
Monarch lathes
Model:
22 X 096 MDL 20CM
Distance between Centers:
96"

Specifications

Condition:
used
Stock number:
62122

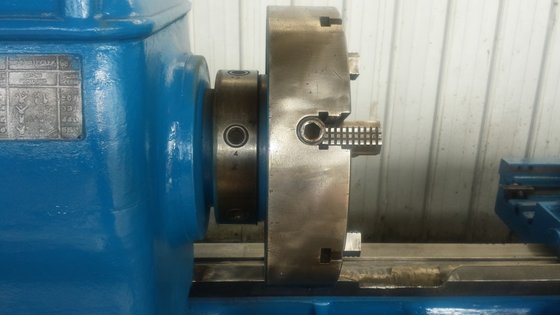

Chuck:
16" 4-JAW
Motor:
20 HORSEPOWER
Taper:
YES
Serial:
27442
Model 2:
20CM
Steady rest:
7" ROLLER
Spindle speeds:
(16) 12- 555 RPM
Swing over ways:
22-1/2"
Threads (english):
3/4 TO 45 TPI
Feeds longitudinal:
0038 TO .240 IPR
Forward & reversing:
YES
Chip pan with coolant:
YES
Swing over cross slide:
12-1/2"
Diameter of spindle hole:
2-1/4"
Distance between centers:
96"
Subcategory:
Lathe- engine

Description

SERIAL ....................... 27442
MODEL ........................ 20CM
SWING OVER WAYS .............. 22-1/2"
SWING OVER CROSS SLIDE ....... 12-1/2"
DISTANCE BETWEEN CENTERS ..... 96"
SPINDLE SPEEDS ............... (16) 12- 555 RPM
DIAMETER OF SPINDLE HOLE ..... 2-1/4"
FEEDS LONGITUDINAL ........... .0038 TO .240 IPR
THREADS (ENGLISH) ............ 3/4 TO 45 TPI
CHUCK ........................ 16" 4-JAW
TAPER ........................ YES
STEADY REST .................. 7" ROLLER
CHIP PAN WITH COOLANT ........ YES
FORWARD & REVERSING .......... YES
MOTOR ........................ 20 HORSEPOWER
