1963 MAS VR 6 A in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
MAS
Model:
VR 6 A

Specifications

Condition:
used
Year:
1963
Stock number:
108965
Category:
Machine Tools equipment in Germany
Subcategory:
Drills

Description

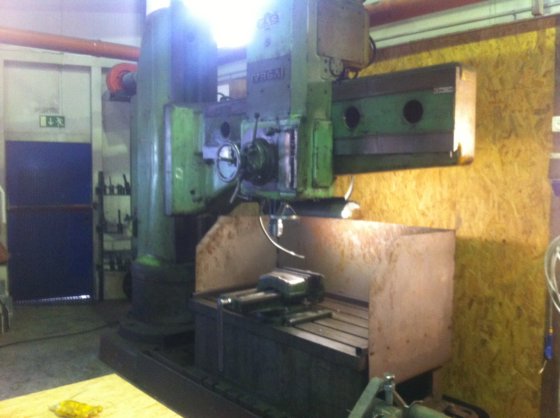

Radial Drilling Machine Model MAS Type VR 6 A
No .: 219 Year of manufacture 1963
Technical specifications:
Throat: 2000 mm
Gr. Drilling capacity at 60/25 kg Strength: 63/80 mm
Gr. Boring rate: 300 mm
Gr. Thread cutting performance: M 64 x 4 / M 85 x 4
kl./gr. Distance spindle / base plate: 540/1865 mm
Vertical adjustment of boom: 950 mm
Horizontal adjustment of the boom: 1613 mm
Possibility to swivel the boom: 0 - 360 °
Spindle mount: MK 5
Spindle stroke: 380 mm
16 spindle speeds: 11.2 - 2000 rpm.
16 feeds: 0.035 - 2.8 mm / rev.
Dimension of the base plate: 3200 x 1100 mm
Mounting surface of base plate: 2290 x 1080 mm
Height of base plate: 235 mm
Drive power: 5.5 kW
Total installed power: 12.6 kW
Dimensions approx .: 3240 x 1300 x 3000/3900 mm
Weight approx .: 5800 kg
With
- hydraulic clamping
Used, in good condition despite the year of construction
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
