Location:
Contamine-sur-Arve, France
Manufacturer:

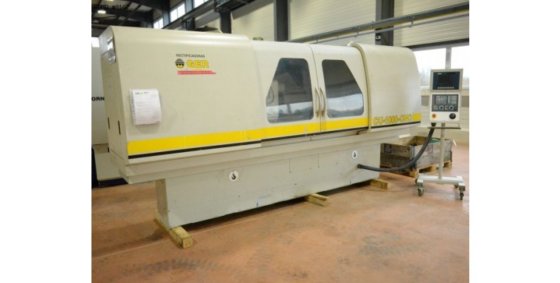

GER
Model:
CU 1000 CNC
Weight:
6150 [kg]

Specifications

Condition:
used
Year:
2002
Stock number:
7943
Weight:
6150 [kg]
Dimensions:
3900 x 2450 x 1800 [mm]
Motor power:
7,5 [kW]
Quill stroke:
40 [mm]
Stroke x x z:
350 x 1180 [mm]
Centers height:
180 [mm]
Quill diameter:
50 [mm]
Rotation speed:
10-800 [rpm]
Tail stock type:
CM4
Peripheral speed:
45 [m/s]
Left wheel dimensions:
500 x 80 x 203 [mm]
Max. grinding diameter:
350 [mm]
Right wheel dimensions:
300 x 25 x 76,2 [mm]
Distance between centers:
1000 [mm]
Part holder headstock type:
CM5
Max. part weight between centers:
150 [kg]
Part holder headstock orientation:
+/- 45°

Description

CN FAGOR 8040 TCO
exter wheel trueing device
internal wheel trueing device
rest 2 points, 3 points
wheel holder headstock manual indexing
various flanges for left and right wheel holder
grinding spindle 18 000 [rpm]
measuring rule on axis X
