1998 BUSELLATO SUPER JUNIOR H
Location:
Europe
Price:
$22,544 USD
Manufacturer:
BUSELLATO
Model:
SUPER JUNIOR H 120

Specifications

Condition:
used
Year:
1998
Recnum:
BP-012161
Comments:

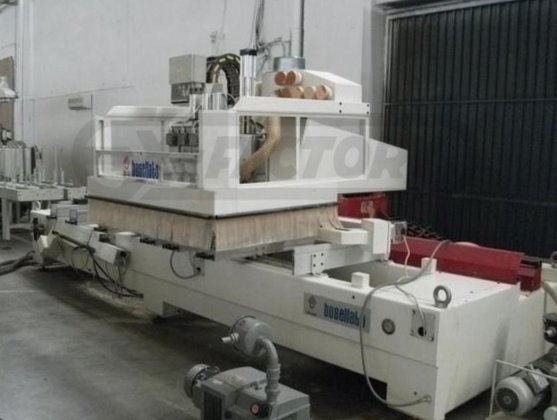

A BUSELLATO CNC Machining Center cleaned and checked ready to be inspected!
Machtype:
CNC MACHINING CENTER
Condition info:
(5-7) Cleaned and checked [6]
Current status:
Active
Elect./voltage:
400 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
165000

Description

BUSELLATO SUPER JUNIOR H 120 CNC MACHINING CENTER:

-- Specifications:Working Cap.: "X" Axis is 2,880 mm (112.2"), "Y" axis is 900 mm (35.4"), "Z" axis stroke is 170 mm (6.7"), max. material thickness is 120 mm (4.7").

-- Positioning speed:"X" axis is 196 FPM (60 MPM), "Y" axis 164 FPM (40 MPM), "Z" axis 49 FPM (15 MPM)

-- Worktable:(6) Pneumatically locking panel supports; 2) vacuum pods per support; (6) Pneumatic backstops, (2) pneumatic side stops & (2) pneumatic central stops; (2) independent work areas.

-- Boring unit:3 HP (2.2 kW) - 4,000 RPM motor; (22) independent vertical spindles (14) of the spindles in "X" axis & (8) spindles in "Y" axis (one shared spindle in X-/Y-axis).(8) Horizontal boring units with (2+2) in "X" axis & (2+2) in "Y" axis; (1) "X" axis grooving saw with 120 mm dia saw blade.

-- Machining:(3) 9.5 HP (7 kW) routers with MK-2 adaptor, (2) with LH rotation & (1) with RH rotation, (0 - 18,000 RPM);

-- Operator & Machine Control:PTP 1000 + "WINNER 90" + Windows 95/98 + "AUTOLINK" Seamless Link operating system with menu driven programming and G-code editor.Super VGA color monitor, standard keyboard, 3-1/2" floppy & hard drive systems for data management, serial & parallel interface for direct link.CAD/CAM software to interface with processor for the "PTP-1000", seamless link DXF conversion software for "WINNER 90".

-- Complete with: Front safety light barriers that will instantly place machine in "Pause Cycle" when operator breaks the beam

-- Actual Model is Busellato SUPER JUNIOR H 120.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
