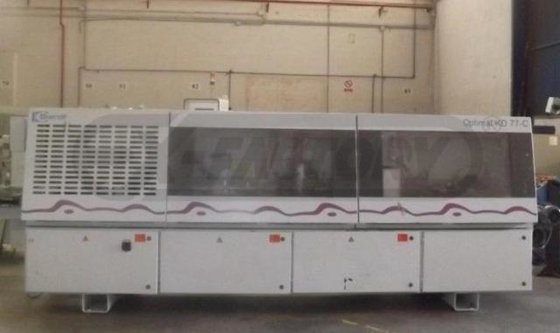

1998 BRANDT KD-77 C EDGEBANDER
Location:
Spain
Price:
$15,770 USD
Manufacturer:
Brandt
Model:
KD-77 C

Specifications

Condition:
used
Year:
1998
Recnum:
EU-013751
Comments:
Cleaned and Checked BRANDT "KD 77 C" with Corner Rounding!
Machtype:
EDGEBANDER (W/CORNER ROUNDING)
Condition info:
(5-7) Cleaned and checked [6]
Current status:
Active
Elect./voltage:
400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
80000

Description

BRANDT "KD-77" Edgebander with Corner Rounding: Basic Machine & Working Capacity:

-- 1/2" (12.7 mm)Edge cap., panel thickness 3/8" (9.5 mm) - 2-3/8" (60 mm); with line control (no limit switches) for workstation function. ~ Quick heat-up glue system w/overhead hopper feed, quick change glue tank for maintenance & glue color change.

-- Automatic magazine for strip & coil stock, 3 mm PVC guillotine, reversible rotation glue roller w/infrared heat zone to follow, (1) drive plus 3-idle roller "pneumatically controlled" pressure section w/digital readout setting.Edgebanding Workstations:

-- End Trimming: (2) motor (0.5 HP - 12,000 RPM motors), chamfers 0° - 15°.

-- Fine/Bevel/Radius Trimming: Top & bottom with insert knives for 3 mm PVC radius (0.75 HP - 12,000 RPM motors).

-- Corner Rounding Unit: 2-Motor for top & bottom corners, (0.5 HP - 12,000 RPM motors).

-- Profile Scraping Unit: Top & bottom for 2 - 6 mm radius, pneumatically controlled blow-off nozzles.

-- Buffing Unit: Top & bottom (0.25 HP - 1,400 RPM motors).Feed, Speed & Complete with:

-- All trimming stations have HF motors w/electronic brakes and are equipped with mechanical digital readouts for quick setup & adjustment; Feed speed 46 FPM, 3 HP feed drive.

-- Swiveling PC-16 Program Control w/12" LCD screen, 8 MB IDE flash disk, 8 MB RAM, internal modem for remote diagnostic link; Signal in-feed light to ensure proper spacing between panels, 7 KW electronic frequency inverter.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
