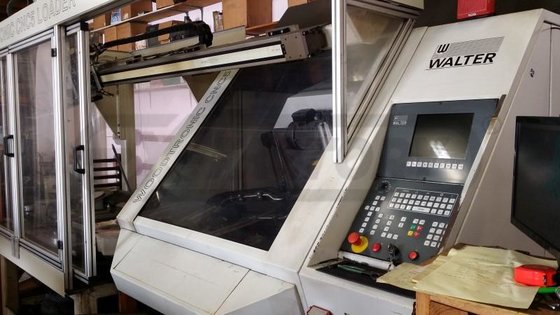

2002 WALTER WOODTRONIC CNC 5
Location:
United States
Price:
$79,500 USD
Model:
WOODTRONIC CNC 5

Specifications

Condition:
used
Year:
2002
Recnum:
GS-011352
Comments:
WALTER CNC "5"Saw Grinder with Loader
Machtype:
AUTOMATIC FACE & TOP GRINDER
Condition info:
(3-6) Good Condition [6]
Current status:
Active
Elect./voltage:
230 V, 60 Cy, 3 Ph.
Appr. repl. cost:
225000

Description

WALTER CNC "5"Saw Grinder with Loader -- This machine is suitable to sharpen automatically the face and top on carbide tipped saw blades in one set-up. The software enables free programming of special tooth shapes at any sequence.

-- Saw blade dia. 3.1" - 28", (80 - 800 mm); saw blade center bore dia. from 10 mm upwards, saw body thickness up to 12 mm.

-- Tooth pitch 0.6" - 4.3" (4 - 126 mm), breast angle (rake angle) -40° to +45°, back clearance angle 1° to 40°.

-- Max. grinding wheel dia. 200 mm, grinding wheel arbor dia. 32 mm, grinding spindle drive: 1,5 HP (1,1 kW) - 3,000 RPM.

-- Coolant pump output 60 L/Min at 3 Bar (44 PSI), coolant tank capacity approx. 150 liter.

-- Includes: Pallet loader -- 2/1.
