1994 DUSPOHL DUP EP PROFILE

1994 DUSPOHL DUP EP PROFILE WRAPPER, HOT MELT [LA-011074] in Germany

Location:
Germany
Price:
$38,000 USD
Manufacturer:
DUSPOHL
Model:
DUP EP

Specifications

Condition:
used
Year:
1994
Recnum:
LA-011074
Comments:
Hard to Find Duespohl Profile Wrapper with Trimming
Machtype:
PROFILE WRAPPER, HOT MELT
Condition info:
(2-5) Fair Condition [5]
Current status:
Active
Elect./voltage:
380 V, 50 Cy, 3 Ph.
Appr. repl. cost:
180000

Description

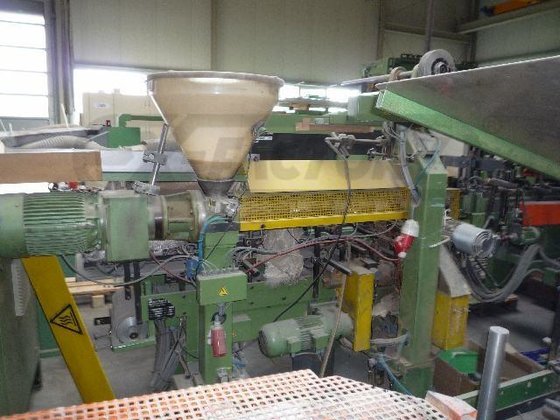

DUSPOHL DUP EP Profile Wrapping Machine with Extruder and Trimming

-- Wide Laminate with from 10 mm - 390 mm ( 3/8" - 15-3/8")

-- High Capacity Glue Extruder.

-- Pressure zone 3.300 mm (130").

-- Trimming Units for veneerIntegrated equipment:

-- Substructure 3,200 mm (126")

-- Chain core infeed

-- (2) Edge brush (left/right)

-- (1) Top brush for surface cleaning

-- IR-heater 3.0 kW

-- Automatic veneer magazine

-- Height adjustment for veneer magazine

-- Extruder VSE 60 V with Roller coater + hot melt glue feeding pump, Pressure and guide roller

-- Pressure zone 3200mm (126")

-- Hot air blower set 6.8kW

-- Electric control cabinet (free standing)Technical data:Basic machine length : 6400 mm (252")Profile width : up to 390 mm (15-3/8")Profile height : up to 130 mm (5")Profile length : min. 700 mm (27-1/2")Veneer width : max. 390mm (15-3/8")Transport speed : 5 – 40 m/min. (16-148 FPM)Working height : 900mm (35")Electrical power : 52kW
