2008 HBE 9000 TON PRESS
Location:
Asia
Manufacturer:
HBE
Model:
9000 TON

Specifications

Condition:
used
Year:
2008
Recnum:
PQ-010135
Machtype:
PRESS (FORGING)
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
575 V, 60 Cy, 3 Ph.
Appr. repl. cost:
1.15e+007
Category:
Presses

Description

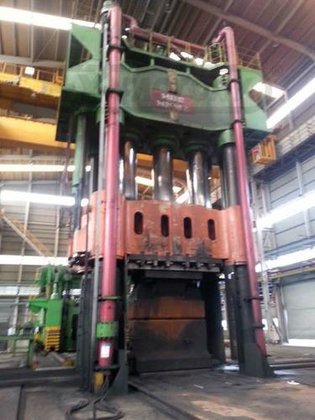

9000 TON HBE HYDRAULIC OPEN DIE HOT FORGING PRESS .

-- Specifications: 8160 TON NORMINA FORCE (MAX 9000 TON)

-- Max. Stroke 122.04", bed area between columns 70.86" x 180.31", down acting 4-post type, 4- each pull back cylinder, sliding bolster, three cylinder type hydraulic.

-- Features: 5-Each 1,300 HP 6,600 volt pump motors, 10-each 180 Gal/Min hydraulic pumps, PLC control panel, desk operator control unit with electrical controls.

-- Includes: HBE 120-Ton Rail bound manipulator, 118.11" max. round dia., less Jaw Insert 3.93 IPM Round Dia. Less Jaw Insert, 153.54" max. turning dia. with extension 2-point tonnage\ unit-hydraulic type with control system.
