Top Seller

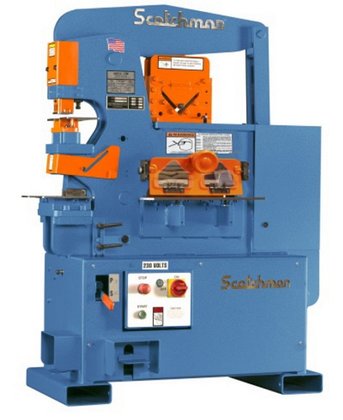

50 Ton 6" Throat Scotchman
Location:
Harrison, NJ
Price:
$9,550 USD
Manufacturer:
Scotchman
Model:
50514-CM *Made in the USA*
Capacity:
50 ton (45 mt)
Weight:
1,389 lbs. (630 kg)

Specifications

Condition:
new
Stock number:
136584
Brake 8:
30 ton (27 mt)
Model 2:
50514-CM
Age info:
NEW
Brake 12:
25 ton (23 mt)
Optional:
5 hp 1 ph (3.73 kW) 220v
Standard:
3 hp 3 ph (2.24 kW) 230/460/208/380/575v
45 degrees:
2" x 2" x 3/8" (50 x 50 x 10 mm)
90 degrees:
4" x 4" x 3/8" (100 x 100 x 10 mm)
Dimensions:
47" L x 29" W x 59" H
Hydraulics:
2,100 psi (145 bar)
Picket tool:
1/2", 3/4", 1" (12 mm, 19 mm, 25 mm)
Schedule 40:
1-1/4" (32 mm)
Strut shear:
samples required
Pipe notcher:
3/4", 1" (19 mm, 25 mm)
Throat depth:
6" (150 mm)
Flat bar shear:
14" length (350 mm)
Open end brake:
Max. 1/4" x 3" (6 x 76 mm) flat or angle iron
Shipping weight:
1,389 lbs. (630 kg)
Special tooling:
2-1/4" max. dia. (57 mm max. dia.)
Opt. sabre blade:
1/2" x 10" (12 x 250 mm)
Round rod (max.):
1/4" to 1" (6 mm to 25 mm)
In heavy material:
17 spm (3/4" stroke) [punch station]
In light material:
40 spm (1/4" stroke) [punch station]
Punching capacity:
50 ton (45 mt)
Rectangle notcher:
2-1/2" x 3" x 5/16" (62 x 75 x 8 mm)
Square rod (max.):
1/4" to 3/4" (6 mm to 18 mm)
Square tube shear:
1/2" to 1", 12 gauge (12 to 25 mm, 2.75 mm)
90 degree v-notcher:
6" x 6" x 1/8" (150 x 150 x 3 mm)
Rectangular notcher:
2-1/2" x 2-3/4" x 3/8"
Angle shear capacity:
4" x 4" x 3/8" @ 90 degrees and 2" x 2" x 3/8" @ 45 degrees
One round punch & die:
max. diameter 1"
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

NEW SCOTCHMAN 50 TON IRONWORKER
MODEL: 50514-CM
*MADE IN THE USA*
STANDARD FEATURES:
50-ton punch station (1-1/4" in 1/2")
Keyed punch ram for safety
6" throat depth
2" die holder
Punch nut with wrench and stripper
One round punch & die: max. diameter 1"
Adjustable stroke control
Angle shear capacity: 4" x 4" x 3/8" @ 90 degrees and 2" x 2" x 3/8" @ 45 degrees
14" flat bar shear with 4-way reversible blade
Rectangular notcher: 2-1/2" x 2-3/4" x 3/8"
Tool table work area
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
230/460 volt/3-ph electrics (must specify voltage)
All guards necessary to comply with ANSI B 11-5 standards
3 year warranty on parts
CAPACITIES AND SPECIFICATIONS:
RATED ON A36 MILD STEEL/65,000 PSI TENSILE
Punching capacity .................................. 50 ton (45 mt)
.................................. 1-1/4" in 1/2" (32 mm in 12 mm)
.................................. 13/16" in 3/4" (21 mm in 18 mm)
Special tooling .................................... 2-1/4" max. dia. (57 mm max. dia.)
Throat depth ....................................... 6" (150 mm)
Flat bar shear ..................................... 14" length (350 mm)
..................................... 3/4" x 4" (18 x 100 mm)
..................................... 1/2" x 8" (12 x 200 mm)
..................................... 3/8" x 10" (10 x 250 mm)
..................................... 1/4" x 14" (6 x 350 mm)
Opt. Sabre blade ................................... 1/2" x 10" (12 x 250 mm)
................................... 3/8" x 12" (10 x 300 mm)
Angle shear
90 degrees ........................................ 4" x 4" x 3/8" (100 x 100 x 10 mm)
45 degrees ........................................ 2" x 2" x 3/8" (50 x 50 x 10 mm)
Brake 8" ........................................... 30 ton (27 mt)
Brake 12" .......................................... 25 ton (23 mt)
Open end brake ..................................... Max. 1/4" x 3" (6 x 76 mm) flat or angle iron
Pipe notcher ....................................... 3/4", 1" (19 mm, 25 mm)
Schedule 40 ....................................... 1-1/4" (32 mm)
....................................... 1-1/2", 2" (38 mm, 50 mm)
Rectangle notcher .................................. 2-1/2" x 3" x 5/16" (62 x 75 x 8 mm)
.................................. 2-1/2" x 2-3/4" x 3/8" (62 x 69 x 10 mm)
90 degree V-notcher ................................ 6" x 6" x 1/8" (150 x 150 x 3 mm)
................................ 3" x 3" x 1/4" (75 x 75 x 6 mm)
Strut shear ........................................ samples required
Rod shear
Round rod (max.) .................................. 1/4" to 1" (6 mm to 25 mm)
.................................. 5 cavity: 7/16" (11 mm), 9/16" (14 mm), 5/8" (16 mm),
3/4" (19 mm), 1" (25 mm)
Square rod (max.) ................................. 1/4" to 3/4" (6 mm to 18 mm)
................................. 1 cavity: 3/4" (18 mm)
Square tube shear .................................. 1/2
