Top Seller
1999 26.77" Swing 13.78" Centers
Location:
Harrison, NJ
Price:
$45,000 USD
Manufacturer:
Mori seiki lathes
Model:
SL-150SMC
Spindle Bore:
1.69"
Spindle Nose:
A2-5

Specifications

Condition:
used
Year:
1999
Stock number:
153684
New:
1999
B-axis travel:
16.93"
X-axis travel:
9.06"
Z-axis travel:
20.47"
Approx. weight:
9020 Lbs.
Machine height:
70"
Swing over bed:
26.77"
Sub-spindle bore:
1.69"
Main spindle bore:
2.2"
Sub-spindle motor:
10 HP / 7 HP
Turret index time:
0.2 Seconds
Approx floor space:
90" x 72"
Main spindle motor:
15 HP / 10 HP
Sub-spindle speeds:
5000 RPM
Main spindle speeds:
50-5000 RPM
Max. turning length:
13.78"
Max. turning diameter:
16.92"
Rapid traverse, x-axis:
708.7 IPM
Swing over cross slide:
17.91"
Jog feeds, x,z,& b axes:
0-50 IPM
Main spindle bar capacity:
1.77"
Number of turret stations:
12 (all 12 can be live)
Rapid traverse, z& b-axes:
944.9 IPM
Rotary tool spindle speed:
3000 RPM
Spindle nose, main& sub-spindle:
A2-5
Min. spindle indexing angle, sub:
0.001 Degree
Min. spindle indexing angle, main:
0.001 Degree
Subcategory:
Cnc machines

Description

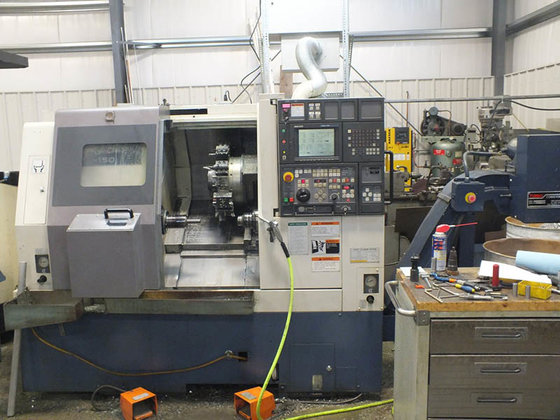

MORI SEIKI SL-150SMC CNC TURNING CENTER w/LIVE TOOL AND SUB-SPINDLE
NEW: 1999
SPECIFICATIONS:
Swing Over Bed ........................ 26.77"
Swing Over Cross Slide ................ 17.91"
Max. Distance Between Spindle Noses ... 24.8"
Max. Turning Diameter ................. 16.92"
Max. Turning Length ................... 13.78"
X-Axis Travel ......................... 9.06"
Z-Axis Travel ......................... 20.47"
B-Axis Travel ......................... 16.93"
Main Spindle Speeds ................... 50-5000 RPM
Main Spindle Bore...................... 2.2"
Main Spindle Bar Capacity ............. 1.77"
Main Spindle Motor .................... 15 HP / 10 HP
Min. Spindle Indexing Angle, Main ..... 0.001 Degree
Sub-Spindle Speeds .................... 5000 RPM
Sub-Spindle Bore ...................... 1.69"
Sub-Spindle Motor ..................... 10 HP / 7 HP
Min. Spindle Indexing Angle, Sub ...... 0.001 Degree
Spindle Nose, Main& Sub-Spindle ....... A2-5
Number Of Turret Stations ............. 12 (all 12 can be live)
Turret Index Time ..................... 0.2 Seconds
Rotary Tool Spindle Speed ............. 3000 RPM
Rapid Traverse, X-Axis ................ 708.7 IPM
Rapid Traverse, Z& B-Axes ............. 944.9 IPM
Jog Feeds, X,Z,& B Axes ............... 0-50 IPM
Approx Floor Space .................... 90" x 72"
Machine Height ........................ 70"
Approx. Weight ........................ 9020 Lbs.
EQUIPPED WITH:
- MORI SEIKI MSC-501 CNC CONTROL
- COLLET CHUCKS ON MAIN & SUBSPINDLES
- FULL C-AXIS ON MAIN AND SUBSPINDLES
- 12 POSITION TURRET (ALL STATIONS CAN BE LIVE)
- CHIP CONVEYOR
- (4) LIVE TOOLHOLDERS
- ALL AVAILABLE STATIC TOOLHOLDERS
- ALL AVAILABLE MANUALS
