Top Seller

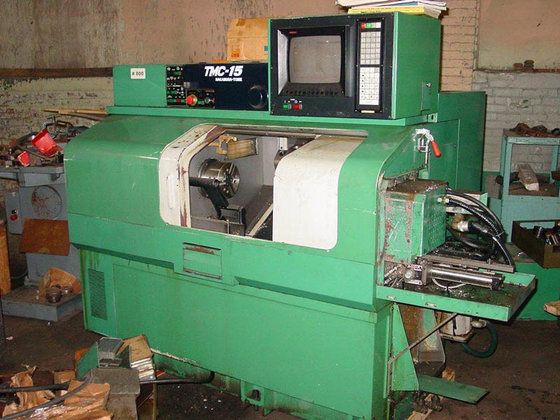

1989 Nakamura-Tome TMC-15 CNC LATHE,
Location:
Harrison, NJ
Price:
$19,500 USD
Manufacturer:
Fanuc lathes
Model:
TMC-15
Spindle Nose:
A2-5

Specifications

Condition:
used
Year:
1989
Serial number:
03807
Stock number:
152800
Speed range:
135-4500 RPM
Spindle nose:
A2-5
Chuck diameter:
6"
Swing over bed:
11.81"
Hole thru spindle:
2.05"
Swing over saddle:
6.69"
Main spindle motor:
AC 7.5/10HP
Max. turning length:
9.84"
Nakamura tome model:
TMC-15 CNC TURNING CENTER W/ SUBSPINDLE
Max. turning diameter:
7.09"
Round collet capacity:
1.65"
Subcategory:
Cnc machines

Description

NAKAMURA TOME MODEL: TMC-15 CNC TURNING CENTER W/ SUBSPINDLE
SPECIFICATIONS:
ROUND COLLET CAPACITY .......... 1.65"
CHUCK DIAMETER ................. 6"
SWING OVER BED ................. 11.81"
SWING OVER SADDLE .............. 6.69"
MAX. TURNING DIAMETER .......... 7.09"
MAX. TURNING LENGTH ............ 9.84"
MAIN SPINDLE MOTOR ............. AC 7.5/10HP
SPEED RANGE .................... 135-4500 RPM
SPINDLE NOSE ................... A2-5
HOLE THRU SPINDLE .............. 2.05"
EQUIPPED WITH:
- FANUC 10TF CNC CONTROL
- 16C COLLET CHUCK ON MAINSPINDLE
- 5C ON SUBSPINDLE
- PARTS CATCHER
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS
