1992 Hardinge CONQUEST 51 CNC
Location:
Harrison, NJ
Price:
$21,500 USD
Manufacturer:
Hardinge lathes
Model:
CONQUEST 51

Specifications

Condition:
used
Year:
1992
Serial number:
CL-174C
Stock number:
151750
Depth:
68.7"
Height:
71"
Length:
110.4"
Standard:
20 HP
Center taper:
MT NO.4
Thrust (max):
1,100 LBS.
Travel (max.):
19"
Z-axis travel:
22.875"
No. of stations:
12
X-axis travel (max.):
6.75"
Coolant tank capacity:
40 US GALLONS
Hydraulic tank capacity:
10 US GALLONS
Torque rating @ 525 rpm:
200 FT - LB
Speed range (1 rpm steps):
50 TO 4,200
Compressed air requirement:
70 TO 90 PSI
X-axis rapid traverse rate:
630 IPM
Z-axis rapid traverse rate:
630 IPM
Round shank tool size (max.):
1-1/2"
Spindle configuration (ansi):
A2-6"
Preloaded ball screw diameter:
1.417"
Square shank tool size (max.):
1"
Rapid traverse and return rate:
350 IPM
Round collet (through capacity):
2" (20C)
Z-axis (drilling) thrust (max.):
2,250 LBS.
Swing diameter over upper way cover:
26"
Subcategory:
Cnc machines

Description

HARDINGE CONQUEST T51 CNC LATHE, NEW: 1992
SPECIFICATIONS:
SPINDLE CONFIGURATION (ANSI)............. A2-6"
ROUND COLLET (THROUGH CAPACITY).......... 2" (20C)
AC DIGITAL DRIVE SYSTEM:
STANDARD................................. 20 HP
TORQUE RATING @ 525 RPM.................. 200 FT - LB
SPEED RANGE (1 RPM STEPS)................ 50 TO 4,200
CARRIAGE AND CROSS SLIDE:
SWING DIAMETER OVER UPPER WAY COVER...... 26"
PRELOADED BALL SCREW DIAMETER............ 1.417"
X-AXIS TRAVEL (MAX.)..................... 6.75"
X-AXIS RAPID TRAVERSE RATE............... 630 IPM
Z-AXIS RAPID TRAVERSE RATE............... 630 IPM
Z-AXIS TRAVEL ........................... 22.875"
Z-AXIS (DRILLING) THRUST (MAX.).......... 2,250 LBS.
BI-DIRECTIONAL VERTICAL TURRET:
NO. OF STATIONS.......................... 12
SQUARE SHANK TOOL SIZE (MAX.)............ 1"
ROUND SHANK TOOL SIZE (MAX.)............. 1-1/2"
DISTANCE FROM SPINDLE FACE TO TURRET MAX. 23.12"
TAILSTOCK:
CENTER TAPER............................. MT NO.4
TRAVEL (MAX.)............................ 19"
RAPID TRAVERSE AND RETURN RATE........... 350 IPM
THRUST (MAX)............................. 1,100 LBS.
MISCELLANEOUS:
COMPRESSED AIR REQUIREMENT............... 70 TO 90 PSI
HYDRAULIC TANK CAPACITY.................. 10 US GALLONS
COOLANT TANK CAPACITY.................... 40 US GALLONS
APPROX. SHIPPING WEIGHT (BASE MACHINE)... 15,000 LBS.
MACHINE DIMENSIONS:
LENGTH................................... 110.4"
DEPTH.................................... 68.7"
HEIGHT................................... 71"
EQUIPPED WITH:

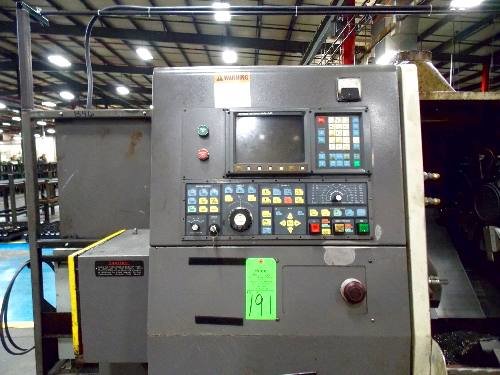

- GE FANUC 0T CONTROL
- 8" 3-JAW HYD CHUCK
- 12 STATION TURRET
- TAILSTOCK
- CHIP CONVEYOR
