12" x 24", Okamoto, No.
Location:
Troy, MI
Weight:
8,820 Lbs

Specifications

Condition:
used
Stock number:
020615
Weight:
8,820 Lbs
Division:
Metalworking
Floor space:
146”W x 79”D x 71” H

Description

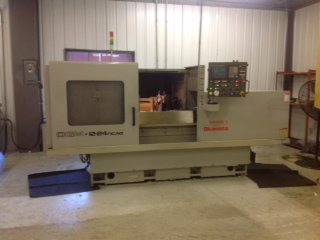

OKAMOTO OGM 1224NCAG CNC ANGLEHEAD GRINDER
PURCHASED NEW 2000
12.6” Swing Over Table
23.6” Distance Between Centers
12” Max Diameter to be Ground
330 Lbs Max Weight Between Centers
18” x 3” x 5” Bore Grinding Wheel
7.5 HP Grinding Wheel
11.8” X-Axis Wheelhead Stroke
35.4” Z-Axis Max Table Travel
30 Degree Fixed Angle of Wheelhead
10 – 500 RPM Workhead Speed
Tailstock, # 4 Morse Taper
Coolant System
Lateral Locating (Shoulder Gauge)
Fanuc 21i-T CNC Control
Floor Space: 146”W x 79”D x 71” H
Weight: 8,820 Lbs
