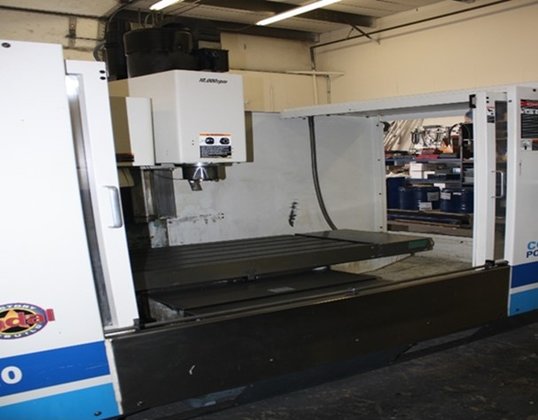

2003 Fadal VMC4020 40" x
Location:
Chicago, IL
Model:
VMC4020 40" x 20" x 20" 3 Axis Vertical Machining Center
Spindle Taper:
40

Specifications

Condition:
used
Year:
2003
Table size:
47.94" X 20"
Equipped with:
CNC 88HS CNC Control, Rigid Tapping, Box Ways, Cool Power (Ballscrews and Spindle) RS232 Port, High Torque Main Motor (22.5 HP Peak), High Torque Main Motor- 220 Ft. Pounds, High Torque Spindle Speeds- 10,000 RPM, 203/440 Volts, Factory Rebuild in 2003
Spindle speed:
10000 RPM
Spindle taper:
40
X-axis travel:
40"
Y-axis travel:
20"
Z-axis travel:
20"
Main motor drive:
20 HP
Tool changer positions:
21

Description

40 Taper, 10000 RPM, 21 ATC, Refurbished New by Fadal (2003)
