Location:
Navasota, TX
Manufacturer:

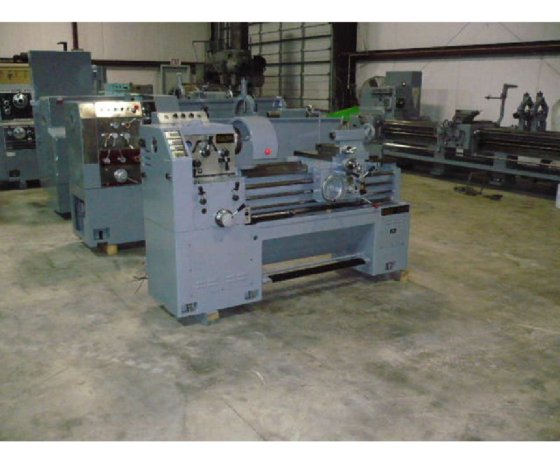

Victor lathes
Model:
1640
Spindle Nose:
D-1-6

Specifications

Condition:
used
Stock number:
L3000165
Weight:
6,256 Lbs.
Chuck size:
12" 4-Jaw
Feeds long:
.0018 To .025 I.P.R.
Gap length:
6"
Main motor:
7.5 Hp.
Coolant pan:
Yes
Feeds cross:
.0015 To .025 I.P.R.
Thread dial:
Yes
Spindle hole:
2-3/64"
Spindle nose:
D-1-6
Swing in gap:
23"
Threads inch:
4 To 56 T.P.I.
Condition info:
Good
Spindle speeds:
60 To 1,800 Rpm's
Threads metric:
.25 To 7 MM
Center distance:
40"
Tail stock taper:
# 4 Morse
Machine dimension:
117" L X 45" W
Swing over bed ways:
16"
Swing over cross slide:
11-1/16"
Tail stock quill travel:
6"
Hardened and ground ways:
Yes
Tail stock quill diameter:
2-1/2"
Subcategory:
Engine

Description

Swing Over Bed Ways 16"
Swing Over Cross Slide 11-1/16"
Gap Length 6"
Swing In Gap 23"
Center Distance 40"
Spindle Hole 2-3/64"
Spindle Speeds 60 To 1,800 Rpm's
Spindle Nose D-1-6
Chuck Size 12" 4-Jaw
Feeds Cross .0015 To .025 I.P.R.
Feeds Long .0018 To .025 I.P.R.
Threads Inch 4 To 56 T.P.I.
Threads Metric .25 To 7 MM
Tail Stock Quill Diameter 2-1/2"
Tail Stock Quill Travel 6"
Tail Stock Taper # 4 Morse
Main Motor 7.5 Hp.
Weight 6,256 Lbs.
Machine Dimension 117" L X 45" W
Coolant Pan Yes
Thread Dial Yes
Hardened And Ground Ways Yes
Note: Machine Will Be Cleaned, Painted And
Cycled.
Condition Good
