2003 WEINIG PROFIMAT 26S SUPER

2003 WEINIG PROFIMAT 26S SUPER MOULDER (FEED THROUGH) [MF-012852] in United States

Location:
United States
Price:
$40,000 USD
Manufacturer:
Weinig
Model:
PROFIMAT 26S SUPER

Specifications

Condition:
used
Year:
2003
Recnum:
MF-012852
Comments:
WEINIG PROFIMAT 26 S SUPER Feed Through Moulder, "SELECT" with short stock package, WEINIG EM 10 Hopper feeder, and FRUILMAC Return System.
Machtype:
MOULDER (FEED THROUGH)
Condition info:
(6-8) Very good condition [8]
Current status:
Active
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
85000

Description

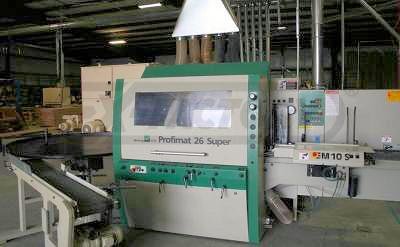

WEINIG PROFIMAT 26 S SUPER Feed Through Moulder, "SELECT" with short stock package, WEINIG EM 10 Hopper feeder, and FRUILMAC Return System.

-- Head Configuration & Cap.: 5-Head (B-R-L-T-B), working cap. 9-1/16" x 4-11/16".

-- Head sequence: Bottom 10 HP, right & left by 15 HP, top 15 HP and bottom 10 HP motor. Mechanical brakes all spindles.

-- Spindle dia.1-1/2" with cutterhead speed of 6,000 RPM; mechanical digital readouts all spindles. Digiset readouts for left and top spindles. Digital readouts for chipbreaker and pressure element at top spindle.

-- Short stock package; Groove guide table plates up to top spindle for parts up to 48". Groove cutter set at first bottom spindle. Reduced distance feed roller opposite left spindle. (1) Additional hold down bars and mounts mounted just prior to top spindle ; prevents short pieces from over riding the piece in front for feeding down to 12" stock. WEINIG EM 10 hopper feeder, pneumatically operated with roller pressure from the side to feed product into the machine. Infeed fence with rollers to minimize side friction of parts feed into the moulder . Hopper will stack parts up to 14" high.

-- Feed System: Feed motor 5 HP, variable speed of 20 - 78 FPM.

-- Infeed straightening 2 M (6'6") table, side pressure roller mounted to infeed table. Features: Central lubrication system, table inserts for right/left vertical spindles and groove guide manual Waxilit pump.

-- Full sound and safety enclosure, operator/spare parts manuals.

-- FRUILMAC FN 3 return conveyor and 6'0" dia. motorized round table for feeding parts back to the operator. .
