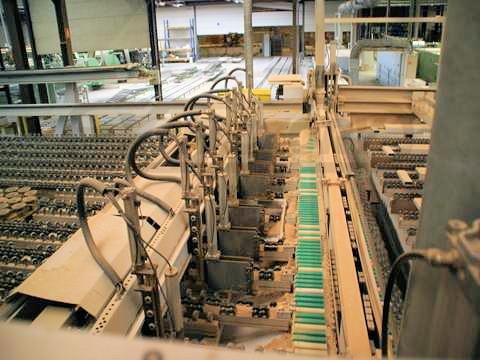

1998 HOLZMA HFV 33/56/22 ANGULAR

1998 HOLZMA HFV 33/56/22 ANGULAR PANEL SAW SYSTEM W/ROTATING STATION [PA-019125] in Europe

Location:
Europe
Price:
$143,942 USD
Manufacturer:
Holzma
Model:
HFV 33/56/22

Specifications

Condition:
used
Year:
1998
Recnum:
PA-019125
Comments:
A Machine like this doesn't come on the market often!
Machtype:
ANGULAR PANEL SAW SYSTEM W/ROTATING STATION
Condition info:
(6-8) Very good condition [8]
Current status:
Active
Elect./voltage:
380/415 V, 50 Cy, 3 Ph.
Appr. repl. cost:
1e+006

Description

HOLZMA HFV 33/56/22 Angular Panel Saw: 220" (5,600 mm) Rip & 86.6" (2,200 mm) crosscut cap; 7.3" (185 mm) saw blade projection.

-- Rip & Crosscut saw carriages: Equipped with infinitely variable travel speed from 15 - 329 FPM (5 - 100 MPM), return speed 329 FPM (100 MPM).

-- Rip & Crosscut pressure beams: Equipped with pneumatic rack & pinion on each side for evenly controlled movement, assures smooth operation & precise cutting dimensions.

-- Rip Cut Section specifications: 40 HP (30 kW) main motor, 3 HP (2.2 kW) scoring motor; electronically controlled program fence with (6) Heavy Duty material clamps & (8) sets of 3-track rollers mounted between panel grippers.Positioning speed 229 FPM (70 MPM) forward feed speed & 229 FPM (70 MPM) return feed speed.

-- Material Transfer from the rip section to drop table for scrap removal, then onto intermediate table with 3-track roller supports.Incorporated pneumatic jump aligners move the ripped panel stacks to the crosscut section onto the same type 3-track roller supports in crosscut saw bed; (2) very heavy side aligners push panel strip stacks against the heavy full length crosscut fence.

-- Crosscut Section specifications: 40 HP (30 kW) main motor, 3 HP (2.2 kW) scoring motor; electronically controlled program fence with (11) material clamps & (12) banks of double row, narrowly spaced wear resistant PVC wheels.Positioning speed 229 FPM (70 MPM) forward feed speed & 229 FPM (70 MPM) return feed speed.

-- Operator Control: HOLZMA "CADMATIC" (Version 3.0) electronic controller with: Color monitor (displays cutting dimensions & patterns in moving colored graphics), (500) cutting dimension memory (99 times repeatable).Data input by keyboard or online via network connection is possible; electrical cabinets with operator control center next to crosscut outfeed;

-- Powered Rear Load infeed system: 220" x 86.6" (5,600 mm x 2,200 mm) 7-ton, 4-post electro-hydraulic lift/load table with powered roller bed, lift table minimum loadable panel size 48" x 96" (1220 x 2440 mm).30" (770 mm) Stack height loading from floor level (55" / 1,400 mm max. stack height with pit).

-- Complete with: (3) outfeed air float tables 83" x 31" (2,100 mm x 800 mm).

-- Options Include: Powered pre-stage outfeed roller conveyor.Outfeed stacking system with tapered forks for accumulating individual stacks onto a pallet with electronic setting of stack height.5 Ton heavy duty scissor lift removal system with LH & RH powered roller outfeed conveyors for continuous operating (requires pit).Powered infeed tables on the LH & RH side of the infeed system.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
