Versa Drill V-1040TRX Drill Rig
United States
Versa Drill
V-1040TRX Drill Rig


Stock number:
Priced Reduced May 2016
Line oiler:
Seven (7) gallon capacity
Drill rigs
Subcategory 2:
Water well drill rigs

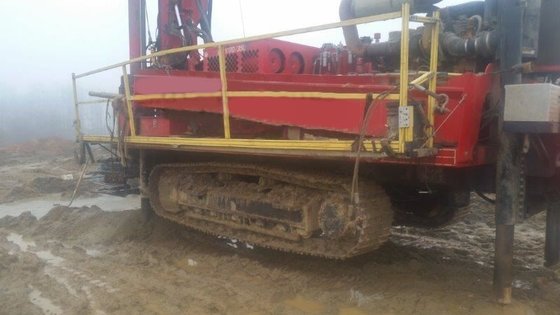

2011 Versa- Drill V-1040TRX Drill Rig
Deck Engine- 5839 Hours
Compressor- 100 hours, brand new replaced in December 2014
Rods- 400' ft of 3.5 in
Drill Specification
Deck Engine
: CAT C-15 (540 HP) A 2,100 w/Dedicated 150 gallon fuel tank, to include fuel cooler.
Combination Compressor Clutch/Pump
Drive Box
Air compressor clutch engage/disengage (manual) and hydraulic pump gear box.
Complete hydraulic system mounted on two(2) hole gear box with integral air compressor clutch engage/disengage (manual), deck engine fly wheel driven.
10”x16” tubular construction 34’ overall length, 26’ overall head travel and 55,000 lb. rating.
Feed System
Hydraulic cylinder driven 3” gear track & 4 pinion gears (patented), w/40,000 lb. pullback 22,100 lb pull down.
Top Head:
High Performance 3-Speed Top head w/ 2 ½” bore hole:
High Torque 8,100 ft.-lb @ 132 RPM
Mid Torque 6,200 ft.-lb @ 173 RPM
Low Torque 4,280 ft.-lb @ 250 RPM
Control Panel
Left hand mounted panel with functionally grouped gauges and controls with twin fold-up platforms.
Leveling Jacks
: Four (4) 36” stroke hydraulic leveling jacks with independent controls. Two (2) mounted behind cab and two mounted at rear of rig.
Centralizer Table
Swing out rear section and retracting front section with dual cylinder and 10” retract capability.
Hydraulic rotating drill pipe carousel system, set up for fifteen (15) pieces of 3 ½” x 20’ drill pipe.
Drill Pipe Rack
Hold 15 pieces of drill pipe, includes stabilizer shoot located on the inside of rod box
Main Winch
Hydraulic winch, 12,000 lb. capacity, bare drum. Includes jib boom w/hydraulic swing and extend.
Auxiliary Winch
4,000 Auxiliary winch w/ swing jib & additional night light
Air Compressor
1070 CFM/350 PSI Ingersoll-Rand self contained modular compressors
Water Injection
Bean 25 GPM Water Injection with foam
Line Oiler: Seven (7) gallon capacity
1. Hammer Holder (2-6” holders)
2. 18” Aluminum catwalk w/ failing
3. Pro Heat Engine Heater
4. Hydraulic quick disconnects for operating auxiliary/mud pump functions
5. Carousel back loading option w/wired remote pendant
6. Rig will be set up with stand pipe and plumbing for connecting to auxiliary mud pump & table mounting brackets for mud pit.
7. 200 Gallon fuel tank
8. Helper stand add on & bracket for future pump
Note: Priced Reduced May 2016
Located in Eastern Region, USA
