Location:
Naples, FL
Price:
$43,500 USD

Specifications

Condition:
used
Year:
1998
Stock number:
17630
Width:
87"
Engine:
Deere
Height:
96"
Length:
313"
Thrust:
36,000 LBS
Weight:
28,000 lbs
Max flow:
119 GPM
Pullback:
40,000 LBS
Fuel type:
Diesel
Max speed:
2400 RPM
Drill stem:
14' 10''
Entry angle:
10-16Ëš
Pump output:
70 gpm
Displacement:
415 cubic inches
Max pressure:
1300 PSI
Pipe diameter:
2.87"
Pump pressure:
1,200 psi
Joint diameter:
3.50"
Make and model:
John Deere 6068HF275
Min bend radius:
190 FT
Max spindle speed:
240 RPM
Min bore diameter:
5"
Fuel tank capacity:
55 GAL
Ground drive speed:
FORWARD: 2.5 MPH
Max carriage speed:
(Thrust) 120 FPM
Max spindle torque:
TORQUE INNER ROD: 5000 FT-LB
Number of cylinders:
6
Hydraulic tank capacity:
36 GAL
Weight of pipe and large box:
(JT4020 - 32 PIPES, JT2720 - 50 PIPES): 6000 LBS
Weight of pipe and small box:
(JT4020 - 16 PIPES, JT2720 - 25 PIPES): 3100 LBS
Manufacturer's gross hp rating:
185 HP
Subcategory:
Hdd drills

Description

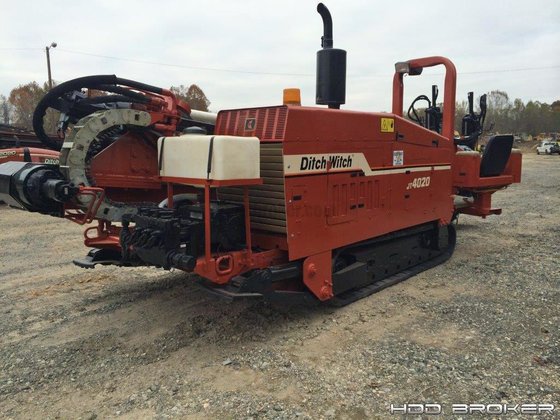

General Description: 1998 Ditch Witch JT4020 Directional Drill: -5600 Hours -FMC Pump
Pipe: Includes 600 feet of Drill Rod.
