Location:
Bensenville, IL
Manufacturer:
Wabash presses
Model:
PC-100-2424-4TM
Capacity:
100

Specifications

Condition:
used
Stock number:
46887001
Tons:
100
Capacity:
100
Frt to bck:
24
Lft to rgt:
24
Platen type:
Electrically Heated
Number of platens:
4
Number of tie bars / posts:
4
Subcategory:
Hydraulic presses

Description

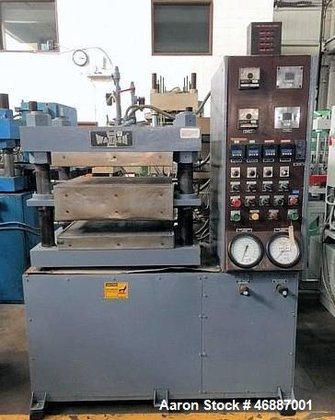

46887001 Used- Wabash 100 Ton Upstroke Hydraulic Molding & Laminating Press, Model PC-100-2424-4TM. 4 Post upstroke type, floor standing, 2 opening. Distance between 3" diameter posts: 28" left to right x 15" front to back. Platen area (nominal) 26" left to right x 25" front to back. Overall platen dimensions: 37" left to right x 25" front to back. Stroke of fully guided platen: 0-7" maximum. Daylight opening (total) 21" maximum. Daylight opening between hot plates: 3.5" maximum. (4) Hot plates 24" left to right x 24" front to back x 2" thick, electrically heated to 600 degrees F, water cooled. (4) Insulation 24" left to right x 24" front to back x 1" thick. Main ram diameter 7"-3" at 2600 psi - 100 tons. Floor to top of moving platen 36". Power unit base of press (2) hydraulic pumps driven by 3 hp, 3/60/230/460 volt, 1750 rpm. Speeds approximate 40" minute closing, 2" minute pressing to 100 tons, 50" minute return. Controls: push button operation with stroke and pressure control,...
