Top Seller
1990 40 Ton 72" Bed
Location:
Harrison, NJ
Price:
$16,500 USD
Manufacturer:
Wysong press brakes
Model:
H-4072
Stroke:
2-1/2"
Capacity:
72" x 12 GA

Specifications

Condition:
used
Year:
1990
Serial number:
HPB13-263
Stock number:
153742
Spm:
25 MAX.
Motor:
5 HP
Stroke:
2-1/2"
Throat:
8-1/2"
Tonnage:
40 TONS
Die space:
9"
Dimensions:
95" x 48" x 96" H
Capacity (ms):
72" x 12 GA
Ram adjustment:
3"
Overall bending length:
72"
Shipping weight, approx:
6,000 LBS.
Distance between housings:
62"

Description

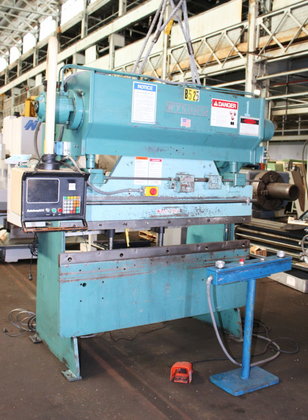

40 TON x 6' WYSONG HYDRA-MECHANICAL PRESS BRAKE
MODEL H-4072 S/N HPB13-263 NEW 1990
TONNAGE .......................... 40 TONS
OVERALL BENDING LENGTH ........... 72"
DISTANCE BETWEEN HOUSINGS ........ 62"
CAPACITY (MS) .................... 72" x 12 GA
DIE SPACE ........................ 9"
STROKE ........................... 2-1/2"
RAM ADJUSTMENT ................... 3"
SPM .............................. 25 MAX.
MOTOR ............................ 5 HP
THROAT ........................... 8-1/2"
SHIPPING WEIGHT, APPROX. ......... 6,000 LBS.
EQUIPPED WITH:
- HURCO 5C CNC SINGLE AXIS BACK GAUGE
- CONTROL STAND WITH DUAL PALM BUTTONS
- FOOT PEDAL
- DIE RAIL
DIMENSIONS: 95" x 48" x 96" H
