BACCI TSG2T AUTOMATIC TWIN TABLE
Location:
Johor, Malaysia
Price:
$9,670 USD
Manufacturer:
BACCI
Model:
TSG2T

Specifications

Condition:
used

Description

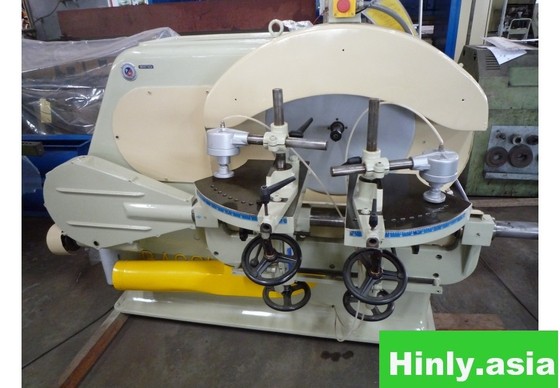

BACCI TSG2T AUTOMATIC TWIN TABLE ROUND END TENONER
Spindle speed : 5700rpm
Dia. external of the cutter : 90mm
Height of the cutter : 100mm
Dia. spindle : 30mm
Dia. of the circular saw : 130mm
Max. tenon length : 120 + 2R mm
Max. depth of the tenon : 50mm
Max. thickness of the tenon : 38mm
Dia. max. of the dowel : 38mm
Transverse displacement of the table : 70mm
Table upstroke : 80mm
Horizontal canting of the table : +20 - 0 - 30
Lateral canting of the table : 0 deg. - 15 deg.
Radial displacement of the workpiece shoulder : 0 deg. - 45 deg.
Angled tenons up to 90 deg.
(as regards to the horizontal surface)
Translation speed of the mobile equipment
Capacity per minute : from 6 to 12
Working pressure : 6 atmos
Compressed air consumption : 90 lt
Quick coupling for air tube : Dia. 1/4"
Motor for cutterhead : 4Hp
Motor for the rotation of the cutterhead : 1Hp
Total installed power : 3,75kw
Protection fuses for the el. circuit a V.220/380 : F1 25/20 A ; F2 10/6 A
Absorption at V.220 A .15 - V.380 A.8,5
Section of the electric cable at 220V : 4 x 4mm
Net weight / Gross weight : 950 / 1215 kgs
Overall dimensions : 1500 x 1120 x 1350mm
Export case size : 1700 x 1350 x 1530mm c/w cutter
# IAU-00019-1C

Machine is in working condition with new paintwork and 3 months warranty from date of shipment. . This warranty does not covered for wear & tear parts and electrical parts.
Shipment of the parts for replacement will be on buyer account.
No warranty of electrical / electronic parts if failure due to low or surge in voltage and lightning surge
