MOBI TRANS 18 COPYING SHAPER
Location:
Johor, Malaysia
Price:
$7,810 USD
Manufacturer:
MOBI
Model:
TRANS 18

Specifications

Condition:
used

Description

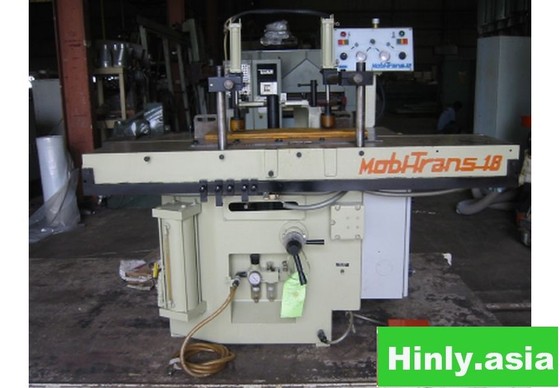

MOBI TRANS 18 COPYING SHAPER
WITH SLIDING TABLE AND MOVING SPINDLE FOR CURVED PIECES

Technical Data :
Moveable table max. stroke : 1000mm
Max. length of the workpieces (with automatic cycle) : 850mm
Max. movement of spindle stroke : 180mm
Spindle diameter : 40mm
Spindle working height : 150mm
Table dimensions : 1650 x 870mm
Movable table size : 1650 x 400mm
Useful table in front of the spindle : 500mm
Four spindle speeds : 2500-4000-6500-8000rpm
Motor power : 7,5Hp
Air pressure, pneumatic system : 6-7 atm bar
Net weight : approx. 740kgs
# EBU00154

Machine is in "as it is" condition
