SHODA SI-135 STD 6ft x
Location:
Johor, Malaysia
Price:
$19,690 USD
Manufacturer:
SHODA
Model:
SI-135

Specifications

Condition:
used

Description

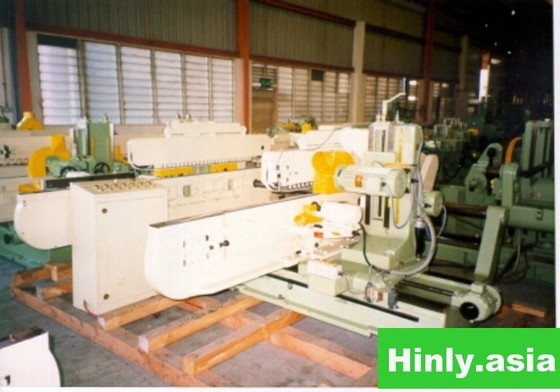

SHODA SI-135 STD 6ft x 6 SPINDLES DOUBLE END TENONER
Scoring motor : 0.75kw x 2
Scoring unit blade : Dia 150mm x dia " (25.4mm) bore
Hogging motor : 3.7kw x 2
Hogging unit :
- Min. cutter dia : 255mm
- Max cutter dia : 305mm
- Bore size : Dia 1 1/4" (31.75mm)
Milling motor : 3.7kw x 2
Milling unit :
- Min cutter dia : Dia 200mm
(Spindle in vertical position and spindle facing downward)
- Max cutter dia : 255mm
- Bore size : Dia 1 1/4" (31.75mm)
Feed motor : 1.5kw
Width adj. motor : 0.4kw
Max working length : 170mm - 1850mm
Max workpiecee thickness : 50mm
Feed speed variable - 4.2 - 13.0 m/min
Machine dimension : 3290(L) x 2600(W) x 1500mm(H)
Weight : 2300kg
# SSU-00065-1B

Machine is in working condition with new paintwork and 3 months warranty from date of shipment. . This warranty does not covered for wear & tear parts and electrical parts.
Shipment of the parts for replacement will be on buyer account.
No warranty of electrical / electronic parts if failure due to low or surge in voltage and lightning surge
