Location:
Elk Grove Village, IL
Model:

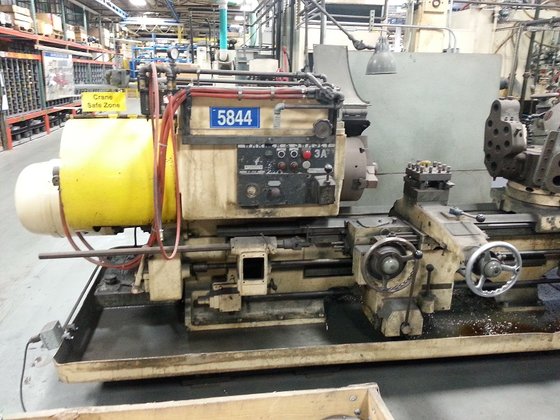

M-3500 3A Square Head Saddle Type Turret Lathe
Spindle Nose:
143/8"

Specifications

Condition:
used
Cross feeds:
(16) 0.0025 0.082"
Spindle motor:
20/40 Hp
Hexagon turret:
with Cross Slide
Hole thru spindle:
6.25"
Longitudinal feeds:
(16) 0.005 0.167"
Longitudinal travel:
51"
Swing over carriage guard:
23.5"
Cross slide longitudinal travel:
51"
Spindle nose, type a 15 cross slide travel:
143/8"
Max. distance - end of spindle - turret face:
59"
Subcategory:
Lathes, turret

Description

15" 3-Jaw Chuck, Tool Post
